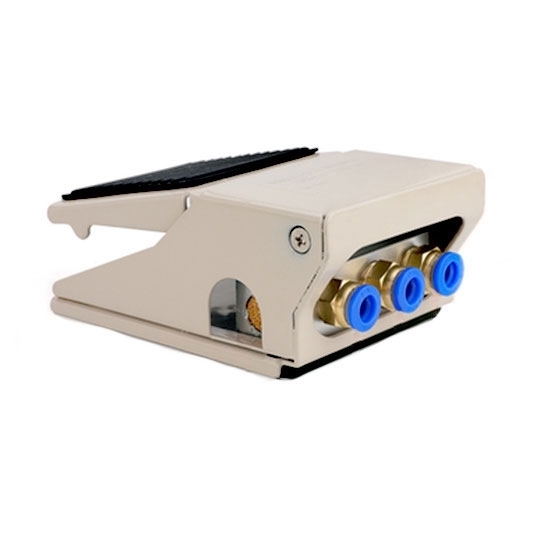

    Pneumatic Foot Pedal, 4 Way 2 Position, with Pneumatic Fitting

    5 out of 5 based on 1 reviews | Write a review
    Pneumatic foot pedal equipped with a muffler, 4 way 2 position, pneumatic fitting 6mm, 8mm and 10mm can be selected, the internal thread is clear and standard, the sealing performance is good, no leakage, stable and reliable.
    SKU: ATO-PFD-FV4206
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Energy saving pneumatic foot pedal switch thick spring design, good quality and durable, not easy to rust, 4 way 2 position, with muffler, pneumatic fitting optional 6mm, 8mm and 10mm.


    • Model: ATO-FV4206
    • Working Medium: Air
    • Action Mode: Foot control direct action
    • Port Size: PT 1/4
    • Number of Positions: 4 Way 2 position
    • Operating Pressure Range: 0~0.8 MPa (0~114 psi)
    • Pressure Resistance: 1.5 MPa (215 psi)
    • Working Temperature: -20~70℃
    • Material: Aluminum alloy
    • Weight: 490g


    • Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
    • Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
    • The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
    • Bold spring, good quality and durable, not easy to rust.

     4 Way 2 Position Pneumatic Foot Pedal Dimension

    Pneumatic foot pedal dimension

    Pneumatic Foot Pedal Details

    4 Way pneumatic foot pedal detail

    Tips: Application of pneumatic foot valve switch

    • Sewing machine
    • Chair movement in medical facilities
    • Medical bed operation
    • Iron press
    • Optical Instruments
    • Laser machine
    • Call center
    • Heavy machinery
    • Medical equipment
