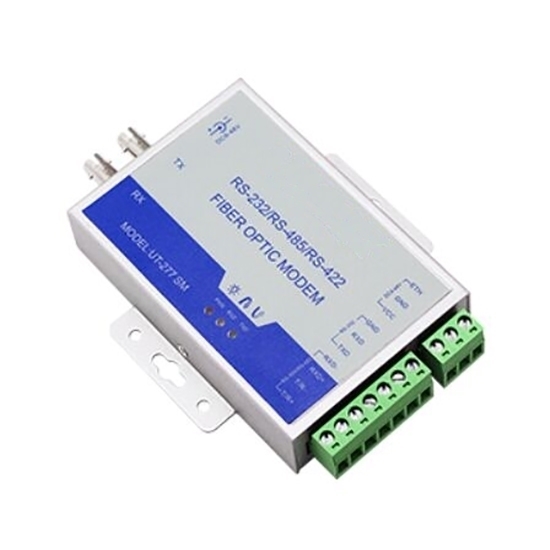

RS232/ 485/ 422 to Fiber Converter, 2PCS

5 out of 5 based on 3 reviews | Write a review

$299.21

Cheap price serial to fiber converter online for sale. The fiber optic converter supports RS232/ 485/ 422 asynchronous protocols, input voltage DC9-48V, 200mA, wavelength 1310 nm (muti mode), 1310/ 1550 nm (single mode). The fiber converters must be used in pairs, are widely used in industrial automation control network system and security monitoring control network system.

SKU: ATO-UT-277SM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Factory price 2-piece RS232/ 485/ 422 to fiber converter with the fastest transmission rate for RS-232 can be 115.2 kbps, and for RS-485/422 can be 460 kbps, the communication distance can be as far as 4km at multimode, and 20km at single mode.

Specification

Model	ATO-UT-277SM
Asynchronous transmission	Point to point, 460 kbps
Input voltage	DC9-48V, 200mA
Port	RS232/ RS485/ RS422 ports
Wavelength	1310 nm (muti mode), 1310/ 1550 nm (single mode)
Interface	RS-232/ RS485/ RS422: Terminal block; fiber port: with optional SC/ FC/ ST
RS-232	Standard RS-232 3 wire ±15kV ESD protection, as high as 115.2 kbps transmission rate
RS-485/ 422	Auto negotiation, no need switch setting, ±15kV ESD protection
Certificate	CE
Warranty	12 months

Note: The package includes two UT-277SM fiber converters, which need to be paired for use.

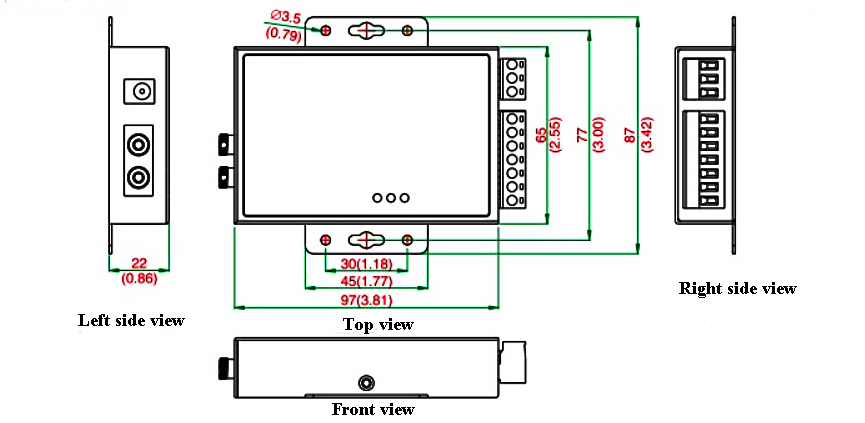

Dimension (inch/ mm)

Dimension of rs232/ 485/ 422 to fiber converter

Details

Applications

Tips: What is Fiber Converter?

RS232/ 485/ 422 optical fiber converter realizes one RS232 or RS485 or RS422 through single-mode optical fiber for long-distance transmission. This product has the characteristics of RS485/ 422 interface supporting multi-machine communication and convenient networking. At the same time, due to the use of optical fiber as the transmission medium, it has the advantages of high isolation voltage, anti-electromagnetic interference, and anti-lightning strike.
232/ 485 optical fiber converter is widely used in various industrial control, distributed data acquisition and other occasions, especially suitable for power system automation, traffic control and other departments.
