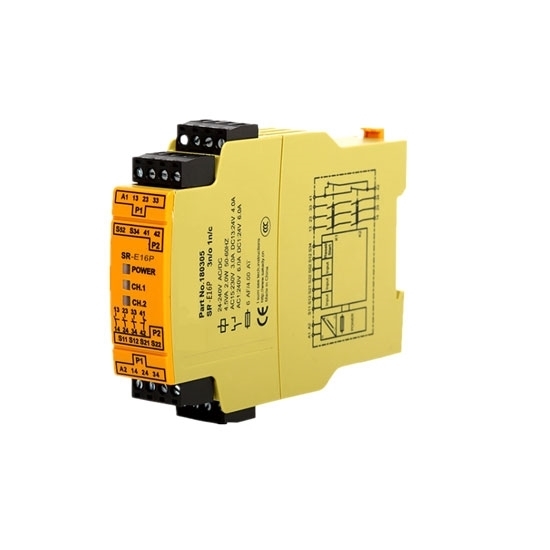

Safety Relay 24V AC/DC 3NO+1NC

5 out of 5 based on 1 reviews | Write a review

$322.64

Safety relay is mainly used for AC 50-60Hz, supply voltage 24VAC/DC, safety contacts 3NO, auxiliary contact 1NC, AC power consumption 2.2VA, DC power consumption 2W. Extremely light, good value for money, direct sales from the manufacturer and free shipping.

Voltage (V) *

SKU: ATO-SR-E16P

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Safety relay has the characteristics of small size, high reliability and low loss. Supply voltage 24V DC/AC, the frequency is between 50 and 60Hz.

Specifications

Basics	Model	ATO-SR-E16P
Basics	Weight	0.2 kg
Technical Parameters	AC supply voltage	24V
	DC supply voltage	24V
	Voltage tolerance	-15-+10℃
	Power consumption	AC: 2.5VA, DC: 2.0W
	Frequency	50-60Hz
	Resihual ripple	DC: 160％
	Voltage and current at reset circuit and feedback loop	UB=24V, DC: 25mA
	Safety contacts	(N/O): 3
	Auxliary contact	(N/C): 1
	Contact material	AgCuNi+0.2μAu
	Extermal contact fuse protection	EN 60947-5-1 (Ik=14kA)
	Blow-out fuse quick	10A
	Blow-out fuse slow	6A
	Safety cut-out	24V
	Characteristic	B/C
	Semiconductor output 24V	24V DC, 20mA
	Extermal power supply	24V DC
	Pollution degree	2
	Overage category	3/2
	Rated insulation	250V
	Rated impulse withstand	4kV
Environment	Ambient temperature	-10℃~+55℃
Environment	Storage tempetature	-40℃~+85℃

Safety Control Relay Dimensions & Connecting diagram

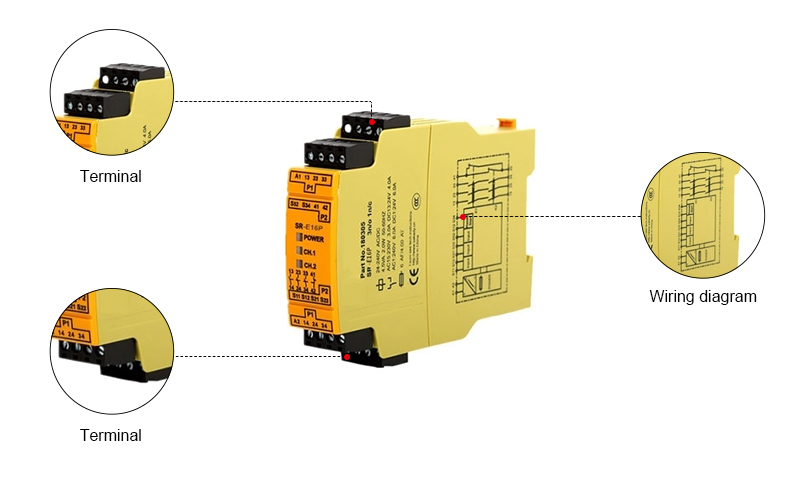

Details

Tips: How to Use Safety Relay?

When the emergency stopping is released, the machine cannot start suddenly
When failure of the machine safety circuit occurs, the power supply of machine can be stopped
When the safety circuit fails, the machine cannot start the safe input such as safety switch and light screen.
