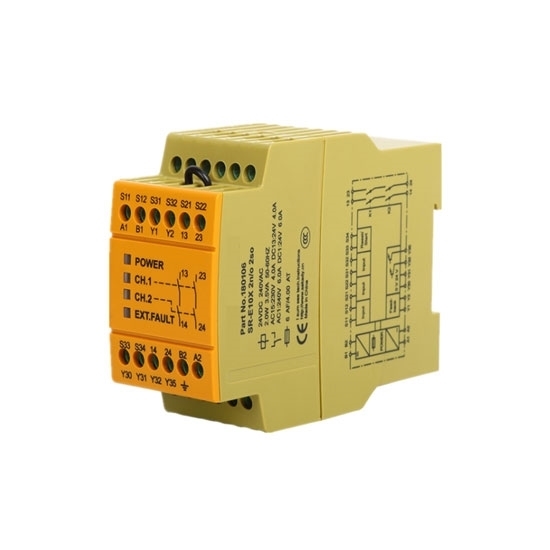

    Safety Relay 24V AC/DC 2NO

    5 out of 5 based on 1 reviews | Write a review
    $298.65
    Low cost DC 24V safety relay, AC power consumption 5.5VA, DC power consumption 2.5W, AC supply voltage 24V, 42V, 115V, 120V, 230V, or 240V, frequency 50-60Hz. ATO provides high-performance safety relay, safely control the environment around any time to monitor.
    SKU: ATO-SR-E10X
    *
    Delivery date: 6-12 days

    Safety relay AC 24V, 42V, 48V, 115V, 120V, 230V, or 240V, DC 24V, safety contacts 2NO, frequency between 50-60Hz, light weight, high safety and manufacturer direct sales.

    Specification

    Basics Model ATO-SR-E10X
    Weight 0.5 kg
    Technical Parameters AC supply voltage 24V, 42V, 48V, 115V,120V,230V, 240V
    DC supply voltage 24V
    Voltage tolerance -15-+10℃
    Power consumption AC: 5.5VA, DC: 2.5W
    Frequency 50-60Hz
    Resihual ripple DC: 160%
    Voltage and current at reset circuit and feedback loop UB=24V, DC: 25mA
    Safety contacts (N/O): 3
    Auxliary contact (N/C): 1
    Contact material AgCuNi+0.2μAu
    Extermal contact fuse protection EN 60947-5-1 (Ik=14kA)
    Blow-out fuse quick 10A
    Blow-out fuse slow 6A
    Safety cut-out 24V
    Characteristic B/C
    Semiconductor output 24V 24V DC, 20mA
    Extermal power supply 24V DC
    Pollution degree 2
    Overage category 3/2
    Rated insulation 250V
    Rated impulse withstand 4kV
    Environment Ambient temperature
    -10℃~+55℃
    Storage tempetature
    -40℃~+85℃

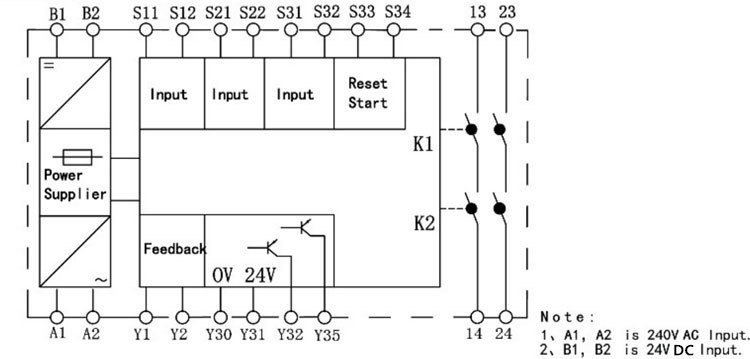

    Dimensions & Connecting diagram
    Internal Connections

    Tips: Sefety relay function

    • Expand the scope of control. For example, when the multi-contact relay control signal reaches a certain value, it can switch, disconnect, and turn on multiple circuits at the same time according to different forms of the contact group.
    • Zoom in. For example, sensitive relays, intermediate relays, etc., can control very high power circuits with a very small amount of control.
    • Integrated signal. For example, when a plurality of control signals are input to a multi-winding relay in a prescribed form, the comparison is integrated to achieve a predetermined control effect.
    • automatic, remote control, monitoring. For example, a relay on an automated device, together with other appliances, can form a program control circuit for automated operation.
    Existing reviews of Safety Relay 24V AC/DC 2NO
    Works great, safety relay has been over a month and still running
    Exact replacement and much cheaper in price than locally available.
    I have been using this safety relay for more than a month and I am very satisfied with it.
    From: Josiah | Date: 10/10/2018
    Was this review helpful? Yes No (0/0)
