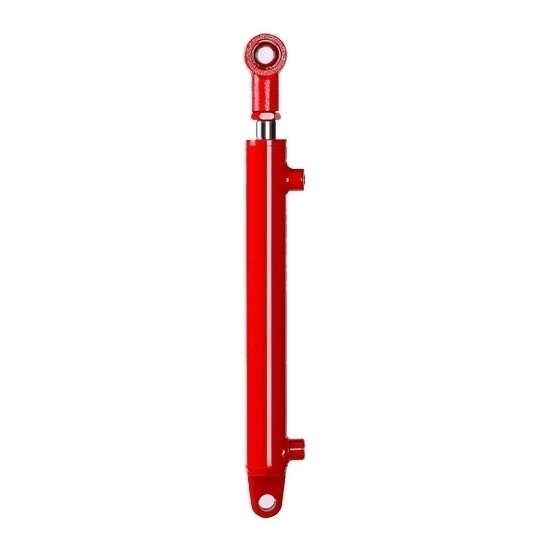

    Double Acting Welded Hydraulic Cylinder, 28 inch (700mm) Stroke

    Cost-effective double acting welded hydralic cylinder for sale online, 28 inch (700mm) stroke, bore diameters are available in 40mm, 50mm, 80mm and 100mm, load capacity 2/ 3/ 8/ 12 ton. It uses hydraulic fluid to exert force in two directions, making it ideal for tasks requiring power and precision, such as splitting logs, tilting dump truck beds, lifting heavy loads, or controlling robotic movements.
    SKU: ATO-WHC-700MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    28 inch double acting welded hydraulic cylinder is a versatile component used in various applications, including log splitters, dump trucks, small and mini excavators, metal bandsaws, robotics, press machines, and heavy duty equipment like lifts and cars.


    Model ATO-HSG40700 ATO-HSG50700 ATO-HSG80700 ATO-HSG100700
    Acting Type Double Acting
    Stroke 28 inch (700mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)


    40mm bore welded hydraulic cylinder dimension


    50mm bore welded hydraulic cylinder dimension


    80mm bore welded hydraulic cylinder dimension


    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40700 40 50 25 700 18*1.5 20 930 980
    ATO-HSG50700 50 60 28 700 18*1.5 20 940 990
    ATO-HSG80700 80 90 50 700 18*1.5 40 1000 1080
    ATO-HSG100700 100 112 63 700 22*1.5 50 1070 1160

    Tips: What is a double acting welded hydraulic cylinder?

    A double-acting welded hydraulic cylinder is a mechanical device used in hydraulic systems to convert fluid pressure into linear motion. It consists of a cylindrical tube, end caps, and a piston that moves back and forth within the tube. What sets it apart from a single-acting cylinder is its ability to exert force in both directions.

    In a double-acting cylinder, pressurized hydraulic fluid is supplied to one side of the piston, causing it to extend and generate a pushing force. Simultaneously, the fluid on the other side of the piston is allowed to return to the reservoir, ensuring efficient retraction when pressure is released. This bidirectional functionality makes double-acting cylinders ideal for a wide range of applications, from industrial machinery and construction equipment to agricultural implements and automotive systems.

    The welded construction of these cylinders ensures durability and strength, making them well-suited for heavy-duty tasks. They are widely used in various industries due to their reliability and precise control of linear motion in both directions.
