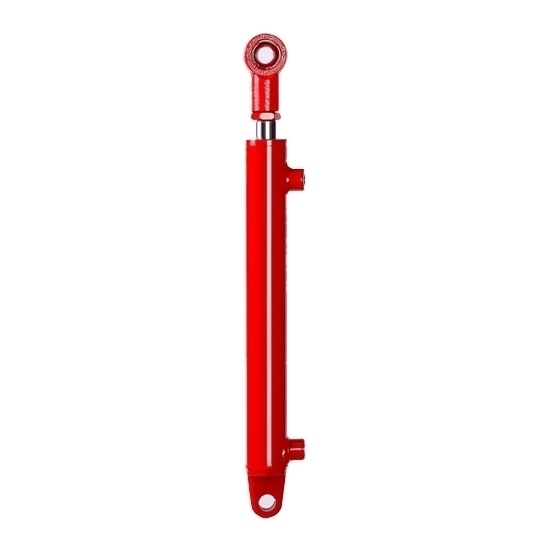

    Double Acting Welded Hydraulic Cylinder, 40 inch (1000mm) Stroke

    Favorable price double acting welded clevis hydraulic cylinder with 40 inch (1000mm) stroke is used in various hydraulic systems and applications, including mini excavators, robots, log splitters, dump trucks, press machine and dump trailers. This heavy duty welded hydraulic cylinder is available in bore size of 40mm, 50mm, 63mm, 80mm and 100mm, load capacity 2/ 3/ 5/ 8/ 12 ton.
    SKU: ATO-WHC-1000MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Heavy duty double acting welded hydraulic cylinder consists of a cylindrical barrel, piston and end cover, all firmly welded together. These welded clevis hydraulic cylinders are available in various bore sizes and strokes and can be used in a wide range of industrial and mobile equipment, including mini excavators, robots, log splitters, dump trucks, presses, dump trailers, etc.


    Model ATO-HSG401000 ATO-HSG501000 ATO-HSG631000 ATO-HSG801000 ATO-HSG1001000
    Acting Type Double Acting
    Stroke 40 inch (1000mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)


    40mm bore welded hydraulic cylinder dimension


    50mm bore welded hydraulic cylinder dimension


    63mm bore welded hydraulic cylinder dimension


    80mm bore welded hydraulic cylinder dimension


    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG401000 40 50 25 1000 18*1.5 20 1230 1280
    ATO-HSG501000 50 60 28 1000 18*1.5 20 1240 1290
    ATO-HSG631000 63 73 35 1000 18*1.5 30 1270 1340
    ATO-HSG801000 80 90 50 1000 18*1.5 40 1300 1380
    ATO-HSG1001000 100 112 63 1000 22*1.5 50 1370 1460

    Tips: Do you need to bleed air from hydraulic cylinder?

    Hydraulic cylinders typically do not require bleeding like pneumatic systems because they operate with incompressible fluids, such as hydraulic oil, instead of gases. Bleeding is necessary in pneumatic systems to remove trapped air, which can affect performance. In hydraulic systems, air can still be problematic, but the procedure is different.

    Air in a hydraulic system can cause issues like reduced efficiency, spongy response, or noise, but it's usually purged during the initial system filling or maintenance. When installing a new hydraulic cylinder or servicing the system, it's essential to follow proper procedures to ensure all air is evacuated. This may involve cycling the cylinder to force air bubbles out, using bleed valves, or using a vacuum pump. Regular maintenance and monitoring are crucial to prevent air ingress over time. So, while hydraulic systems don't require regular bleeding, managing air during initial setup and maintenance is vital to ensure their proper operation.
