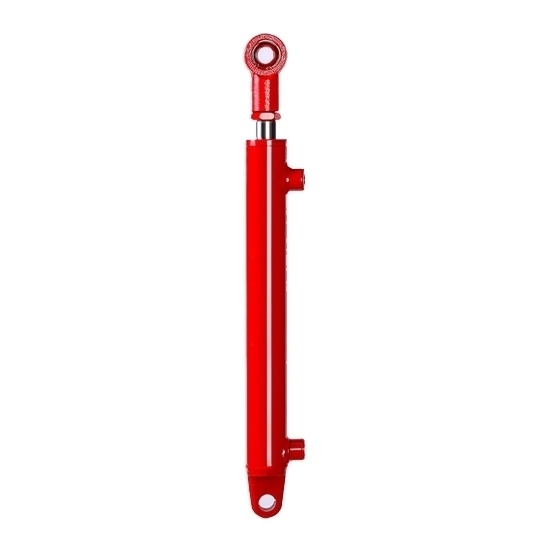

    Double Acting Welded Hydraulic Cylinder, 8 inch (200mm) Stroke

    Double acting welded hydraulic cylinder comes with 8 inch (200mm) stroke, bore diameter of 40mm, 50mm, 63mm, 80mm and 100mm available, load capacity 2/ 3/ 5/ 8/ 12 ton, for use in mini excavators, robotics, log splitters and dump trailers. This small welded clevis hydraulic cylinder is a critical component in hydraulic systems to convert fluid power in to mechanical force or motion.
    SKU: ATO-WHC-200MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Double acting welded hydraulic cylinder consists of a cylindrical barrel, a piston, and end caps, all securely welded together. These welded clevis hydraulic cylinders come in various sizes and configurations, making them versatile for use in diverse industrial and mobile equipment, including mini excavators, robotics, log splitters, dump trucks, press machines, dump trailers, and so on.


    Model ATO-HSG40200 ATO-HSG50200 ATO-HSG63200 ATO-HSG80200 ATO-HSG100200
    Acting Type Double Acting
    Stroke 8 inch (200mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)


    40mm bore welded hydraulic cylinder dimension


    50mm bore welded hydraulic cylinder dimension


    63mm bore welded hydraulic cylinder dimension


    80mm bore welded hydraulic cylinder dimension


    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40200 40 50 25 200 18*1.5 20 430 380
    ATO-HSG50200 50 60 28 200 18*1.5 20 440 490
    ATO-HSG63200 63 73 35 200 18*1.5 30 470 540
    ATO-HSG80200 80 90 50 200 18*1.5 40 500 580
    ATO-HSG100200 100 112 63 200 22*1.5 50 570 660

    Tips: What are the advantages of welded hydraulic cylinders?

    Welded hydraulic cylinders offer several advantages in various industrial applications. First, their design is robust and compact, which enhances durability and allows for easy integration into tight spaces. The welding process provides a strong and leak-resistant seal, minimizing the risk of hydraulic fluid leakage and ensuring consistent performance.

    Welded cylinders are also highly customizable, allowing for precise tailoring to specific requirements, such as stroke length and bore size, to meet the needs of diverse applications. This flexibility results in cost-effective solutions and efficient use of resources. Additionally, the absence of tie rods in welded cylinders eliminates potential weak points, reducing maintenance and repair costs.

    Moreover, welded construction simplifies servicing and resealing, making maintenance more accessible. Overall, these cylinders are favored for their durability, versatility, and reliability, making them a preferred choice in hydraulic systems where strength, space-saving design, and customization are essential.
