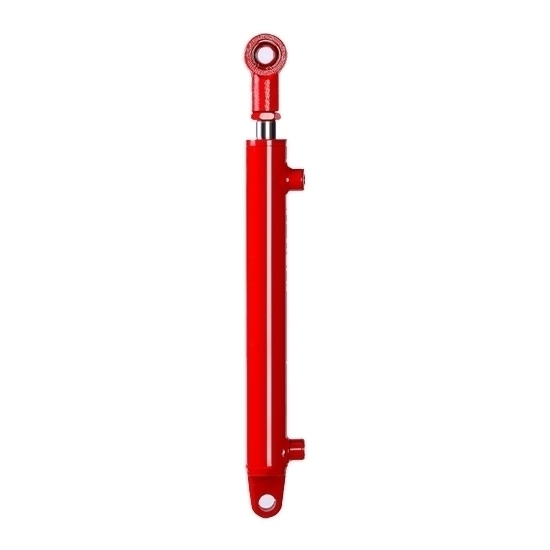

    Double Acting Welded Hydraulic Cylinder, 14 inch (350mm) Stroke

    $136.29
    Purchase double acting welded hydraulic cylinder at economical price, 14 inch (350mm) stroke, bore diameters are available in 40mm, 50mm, 80mm and 100mm, load capacity 2/ 3/ 8/ 12 ton. This welded clevis hydraulic cylinder is used in various applications, from log splitters and dump trucks to small, mini robots, metal bandsaws, press machines, and heavy duty industrial equipment.
    SKU: ATO-WHC-350MM
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    14 inch stroke double acting welded hydraulic cylinders are commonly used in mini excavators, robots, log splitters, dump trucks, press machine and dump trailers, and more. They are capable of performing pushing and pulling actions, making them versatile for tasks that require controlled movement and force in both directions.

    Specification

    Model ATO-HSG40350 ATO-HSG50350 ATO-HSG80350 ATO-HSG100350
    Acting Type Double Acting
    Stroke 14 inch (350mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)

    ATO-HSG40350

    40mm bore welded hydraulic cylinder dimension

    ATO-HSG50350

    50mm bore welded hydraulic cylinder dimension

    ATO-HSG80350

    80mm bore welded hydraulic cylinder dimension

    ATO-HSG100350

    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40350 40 50 25 350 18*1.5 20 580 630
    ATO-HSG50350 50 60 28 350 18*1.5 20 590 640
    ATO-HSG80350 80 90 50 350 18*1.5 40 650 730
    ATO-HSG100350 100 112 63 350 22*1.5 50 720 810

    Tips: Difference between double acting and single acting hydraulic cylinder

    Double acting and single acting hydraulic cylinders are two different actuator types in hydraulic systems, and the key difference between them is the way they operate. Double acting hydraulic cylinders have two ports, one for liquid entry and the other for liquid discharge. It is capable of exerting force in both extension and retraction directions. When hydraulic fluid is supplied to the inlet port, the hydraulic cylinder extends and when fluid is discharged from the outlet port, it retracts. Double-acting hydraulic cylinders are extremely versatile and are often used in a variety of applications that require both pushing and pulling power. Single-acting hydraulic cylinders usually have only one port for fluid entry. It can only exert force in one direction (usually the extension direction) and relies on an external force (such as a spring or load) to achieve the return or retraction stroke. Single-acting hydraulic cylinders are simpler and are typically used in applications where force needs to be generated in only one direction, such as lifting or pressing applications. In summary, the main difference between these hydraulic cylinders is their ability to generate force in one or two directions, which makes them suitable for different hydraulic system needs.
