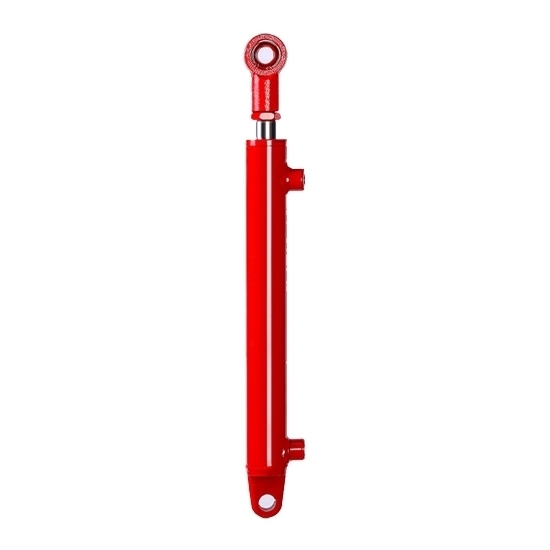

    Double Acting Welded Hydraulic Cylinder, 20 inch (500mm) Stroke

    Factory price 20 inch (500mm) stroke double acting welded hydralic cylinder is avaliable in bore diameters of 40mm, 50mm, 63mm, 80mm and 100mm, load capacity 2/ 3/ 5/ 8/ 12 ton. This welded clevis hydraulic cylinder is used in various applications, from log splitters and dump trucks to small, mini robots, metal bandsaws, press machines, and heavy duty industrial equipment.
    SKU: ATO-WHC-500MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    20 inch double acting welded hydraulic cylinder is a type of hydraulic cylinder used in various hydraulic systems to provide linear motion. Hydraulic cylinders are essential components in many industrial and mobile applications, such as mini excavators, robots, log splitters, dump trucks, press machine and dump trailers.


    Model ATO-HSG40500 ATO-HSG50500 ATO-HSG63500 ATO-HSG80500 ATO-HSG100500
    Acting Type Double Acting
    Stroke 20 inch (500mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)


    40mm bore welded hydraulic cylinder dimension


    50mm bore welded hydraulic cylinder dimension


    63mm bore welded hydraulic cylinder dimension


    80mm bore welded hydraulic cylinder dimension


    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40500 40 50 25 500 18*1.5 20 730 780
    ATO-HSG50500 50 60 28 500 18*1.5 20 740 790
    ATO-HSG63500 63 73 35 500 18*1.5 30 770 840
    ATO-HSG80500 80 90 50 500 18*1.5 40 800 880
    ATO-HSG100500 100 112 63 500 22*1.5 50 870 960

    Tips: Double acting welded hydraulic cylinder applications

    Double acting welded hydraulic cylinders find diverse applications across various industries. They are widely used in heavy machinery and construction equipment to provide precise and controlled linear motion. These cylinders can push and pull, making them suitable for tasks like lifting, lowering, tilting, and clamping. In the agricultural sector, they assist in tasks such as plowing, harvesting, and baling. In the automotive industry, double acting cylinders are utilized in car lifts and tire changers. Additionally, they play a crucial role in material handling systems, including conveyor belts and forklifts, providing efficient and consistent movement of goods. In the manufacturing and processing industry, these cylinders are employed in press machines, metal forming equipment, and more. Their ability to exert force in both directions makes them versatile and essential components for a wide range of applications requiring controlled linear motion.
