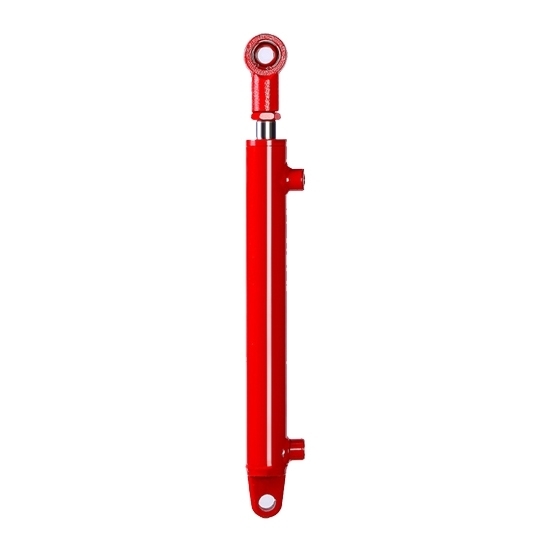

    Double Acting Welded Hydraulic Cylinder, 4 inch (100mm) Stroke

    $83.39
    Small double acting welded hydraulic cylinder for sale, with 4 inch (100mm) stroke, available in bore diameter of 40mm, 50mm, 63mm, 80mm, 100mm, load capacity 2/ 3/ 5/ 8/ 12 ton. This welded clevis hydraulic cylinder is a critical component in hydraulic systems to convert fluid power into mechanical force or motion.
    SKU: ATO-WHC-100MM
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    The double acting welded hydraulic cylinder consists of a cylindrical barrel, a piston, and end caps, all securely welded together. These welded clevis hydraulic cylinders come in various sizes and configurations, making them versatile for use in diverse industrial and mobile equipment, including mini excavators, robotics, log splitters, dump trucks, press machines, dump trailers, and so on.

    Specification

    Model ATO-HSG40100 ATO-HSG50100 ATO-HSG63100 ATO-HSG80100 ATO-HSG100100
    Acting Type Double Acting
    Stroke 4 inch (100mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)

    ATO-HSG40100

    40mm bore welded hydraulic cylinder dimension

    ATO-HSG50100

    50mm bore welded hydraulic cylinder dimension

    ATO-HSG63100

    63mm bore welded hydraulic cylinder dimension

    ATO-HSG80100

    80mm bore welded hydraulic cylinder dimension

    ATO-HSG100100

    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40100 40 50 25 100 18*1.5 20 330 380
    ATO-HSG50100 50 60 28 100 18*1.5 20 340 390
    ATO-HSG63100 63 73 35 100 18*1.5 30 370 440
    ATO-HSG80100 80 90 50 100 18*1.5 40 400 480
    ATO-HSG100100 100 112 63 100 22*1.5 50 470 560

    Tips: What is the difference between welded and tie rod hydraulic cylinders?

    Welded and tie-rod hydraulic cylinders are two common types of hydraulic actuators with distinct design features.

    Welded cylinders are constructed by welding the end caps to the barrel, creating a single, integrated unit. They are typically more compact, robust, and have fewer potential leak points, making them suitable for heavy-duty applications. Welded cylinders are also often less expensive due to their simpler construction.

    Tie-rod cylinders, on the other hand, consist of a barrel and end caps connected by multiple tie rods that run parallel to the cylinder's axis. This design allows for easy disassembly and maintenance, as the tie rods can be removed to access internal components. Tie-rod cylinders are versatile and are often used in applications where customization and repairability are essential.

    The main differences lie in construction and application. Welded cylinders are more compact and robust, while tie-rod cylinders offer ease of maintenance and adaptability, making them suitable for a wider range of applications.
