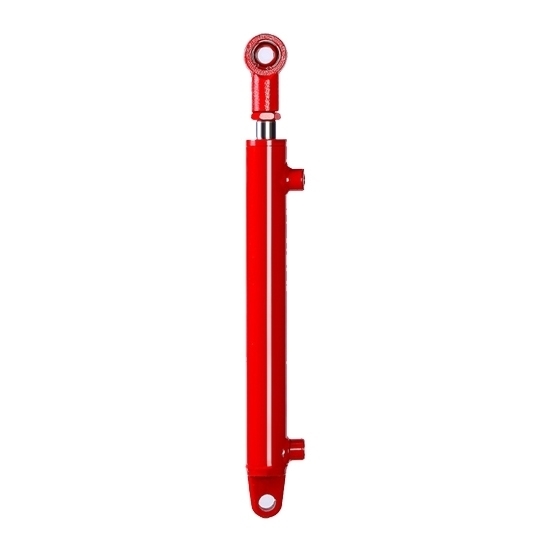

    Double Acting Welded Hydraulic Cylinder, 6 inch (150mm) Stroke

    Buy low price double acting welded hydraulic cylinder online. It comes with 6 inch (150mm) stroke for mini excavators, robotics, log splitters, bore diameter of 40mm, 50mm, 63mm, 80mm and 100mm available, load capacity 2/ 3/ 5/ 8/ 12 ton. This small welded clevis hydraulic cylinder is a critical component in hydraulic systems to convert fluid power in to mechanical force or motion.
    SKU: ATO-WHC-150MM
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO double acting welded hydraulic cylinder consists of a cylindrical barrel, a piston, and end caps, all securely welded together. These welded clevis hydraulic cylinders come in various sizes and configurations, making them versatile for use in diverse industrial and mobile equipment, including mini excavators, robotics, log splitters, dump trucks, press machines, dump trailers, and so on.


    Model ATO-HSG40150 ATO-HSG50150 ATO-HSG63150 ATO-HSG80150 ATO-HSG100150
    Acting Type Double Acting
    Stroke 6 inch (150mm)
    Rated Pressure 16Mpa
    Installation Double Ear Welding Type
    Speed Ratio 1:3
    Bore Diameter φ40mm φ50mm φ63mm φ80mm φ100mm
    Load Capacity 2 Ton 3 Ton 5 Ton 8 Ton 12 Ton
    Rated Push Force 30772N (3 Ton) 30772N (3 Ton) 49850N (5 Ton) 80384N (8 Ton) 80384N (8 Ton)
    Rated Pull Force 21121N (2 Ton) 21121N (2 Ton) 31681N (3 Ton) 48984N (5 Ton) 49014N (5 Ton)
    Oil Port 18*1.5 18*1.5 18*1.5 18*1.5 22*1.5

    Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

    Dimension (Unit: mm)


    40mm bore welded hydraulic cylinder dimension


    50mm bore welded hydraulic cylinder dimension


    63mm bore welded hydraulic cylinder dimension


    80mm bore welded hydraulic cylinder dimension


    100mm bore welded hydraulic cylinder dimension

    Model Inner Diameter Outer Diameter Rod Diameter Stroke Oil Port Pin Hole Installation Distance Total Length
    ATO-HSG40150 40 50 25 150 18*1.5 20 380 430
    ATO-HSG50150 50 60 28 150 18*1.5 20 390 440
    ATO-HSG63150 63 73 35 150 18*1.5 30 420 490
    ATO-HSG80150 80 90 50 150 18*1.5 40 450 530
    ATO-HSG100150 100 112 63 150 22*1.5 50 520 610

    Tips: How does a hydraulic cylinder work?

    A hydraulic cylinder is a mechanical device that converts fluid power into linear motion. It consists of a cylindrical tube, a piston, and hydraulic fluid. When force is applied to the fluid within the cylinder, typically by a pump, it creates pressure. This pressure acts on the piston, causing it to move within the cylinder. The piston is connected to a rod, and as it moves, it generates linear force and motion.

    The key principle at work is Pascal's law, which states that any change in pressure applied to an enclosed fluid is transmitted undiminished in all directions. In a hydraulic cylinder, this pressure is harnessed to produce controlled and powerful linear motion, making them valuable in a wide range of applications, from construction equipment and manufacturing machinery to automotive braking systems and more. By controlling the flow of hydraulic fluid, the direction and speed of the piston's movement can be precisely regulated, allowing for precise control over the machine or system it powers.
