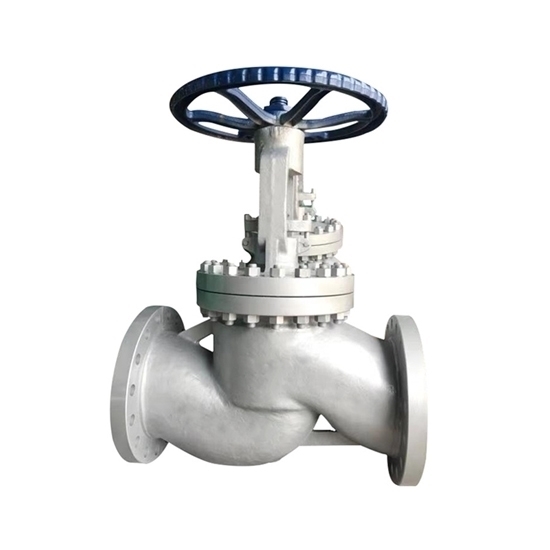

1-1/4" Flanged Globe Valve

Thickened body makes the globe valve stable. Mechanical seal and antirust globe valve can be used in petroleum, chemical and power system.

Features:

• Streanline, outside screw and yoke.
• Loose disc, rising stem and handwheel.
• Yoke integral with bonnet, available with gear operator.

Specification:

• Model: J41W-16C
• Port Size: 1-1/4 inch (DN32)
• Material: carbon steel
• Structural Style: straight through form
• Connection Type: flange connection
• Medium: water, oil, steam
• Pressure: PN16-PN100
• Direction of Flow: one way flow
• Drive Mode: manual
• Working Temperature: -29 ℃ ~ 425 ℃

Dimension (Unit: mm)

Tips: What is Flanged Connection?

Flange connection is the two pipes, pipe fittings or equipment, respectively fixed on a flange plate, and then add flange pad between the two flanges, and finally use a bolt to pull the two flanges tightly together. A connection can be made between a stationary pipe and a rotating or reciprocating device.
