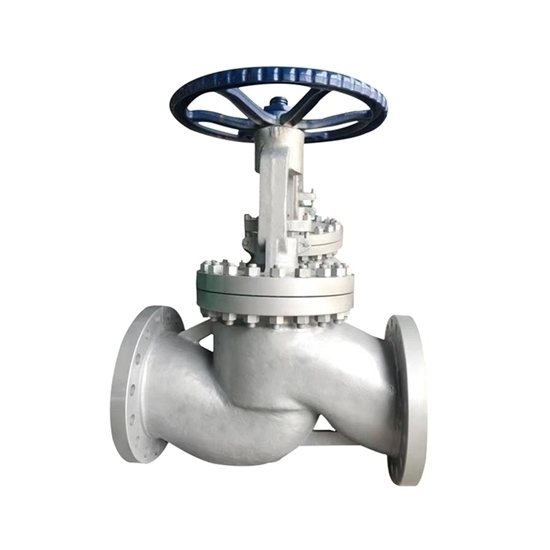

1-1/2" Flanged Globe Valve

Note: This globe valve cannot be used for drinking water.

The structure of the globe valve is straight through. The flow direction of 1-1/2 inch globe stop valve is one-way flow. Working temperature of globe control valve between -29 ℃ and 425 ℃.

Features:

• Streanline, outside screw and yoke.
• Loose disc, rising stem and handwheel.
• Yoke integral with bonnet, available with gear operator.

Specification:

• Model: ATO-J41H-16/25C-DN40
• Port Size: 1-1/2 inch (DN40)
• Material: carbon steel
• Structural Style: straight through form
• Connection Type: flange connection
• Medium: water, oil, steam
• Pressure: 1.6Mpa/2.5Mpa
• Direction of Flow: one way flow
• Drive Mode: manual
• Working Temperature: -29 ℃ ~ 425 ℃
• Net Weight: 21kg

Dimension (Unit: mm)

Tips: Types of Flange

• Flange type, according to the flange and pipe fixing way can be divided into threaded flange, welded flange, loose sleeve flange; According to the sealing surface form, it can be divided into smooth type, concave and convex type, tenon type, lens type and trapezoidal groove type.
• General low pressure small diameter with wire flange, high pressure and low pressure large diameter with welding flange, different pressure flange thickness and connecting bolt diameter and number is different.
• Flange gaskets also come in different materials according to different levels of pressure, from low pressure asbestos gaskets, high pressure asbestos gaskets and PTFE gaskets to metal gaskets.
