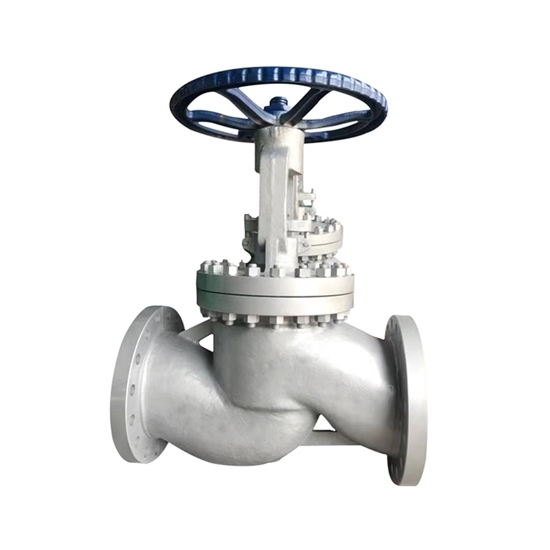

1/2" Flanged Globe Valve

$270.16

1/2 inch flanged globe valve with carbon steel for sale online. Thickened body makes the globe valve stable. Working temperature of globe valve flange type between -29 ℃ and 425 ℃. Mechanical seal and anti-rust globe valve can be used in petroleum, chemical and power system.

Pressure *

SKU: ATO-GV-15FGV

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Note: This globe valve cannot be used for drinking water.

Flange globe valve with thickened body, not easy to burst and good sealing. The medium for the globe valve is water, oil and steam.

Features:

Streanline, outside screw and yoke.
Loose disc, rising stem and handwheel.
Yoke integral with bonnet, available with gear operator.

Specification:

Model: ATO-J41H-16/25C-DN15
Port Size: 1/2 inch (DN15)
Material: carbon steel
Structural Style: straight through form
Connection Type: flange connection
Medium: water, oil, steam
Pressure: 16Mpa/2.5Mpa
Direction of Flow: one way flow
Drive Mode: manual
Working Temperature: -29 ℃~425 ℃
Net Weight: 8kg

Dimension (Unit: mm)

Flange globe valve dimension

DN (mm)	L	D	D₁	D2	b	Z-φd	H	Do
DN15	130	95	65	45	16	4-φ14	218	120

Tips: Advantages of Globe Valve

Compared with gate valve, the globe valve is simple in structure, convenient in manufacture and maintenance.
Sealing surface is not easy to wear, abrasion, good sealing and long life.
When opening and closing, the disc stroke is smaller, the opening and closing time is shorter, and the valve height is smaller.
