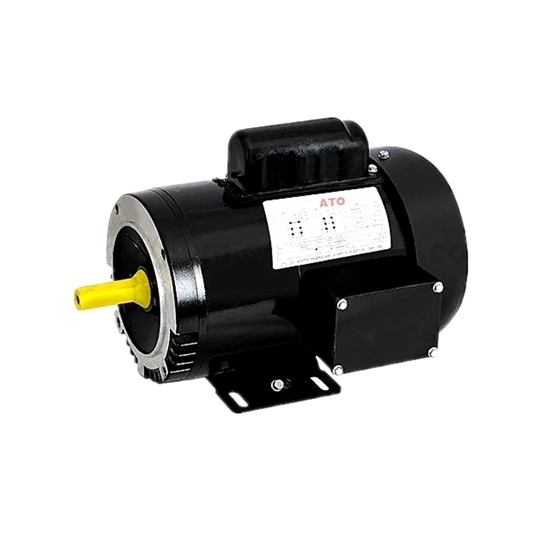

    1/2 hp NEMA AC Induction Motor, Split Phase 115/230V, ODP/TEFC

    Split phase AC induction motor is 1/2 horsepower asynchronous motor, NEMA design B standard, 1725 rpm, 4 pole, runnning at 115/ 230V voltage. Open drip proof (ODP) or totally enclosed fan cooled (TEFC) enclosure type of high efficiency induction motors are avalaible.
    SKU: ATO-IM-RS124
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    This ATO small AC electric motor is a split phase, 60Hz, 1725rpm, 150/230V induction motor for general purpose applications such as pumps, fans, compressors. It has a heavy roll steel 56 frame construction for strength and durability and ODP/ TEFC enclosure for protecting from the outside environment.

    1/2 hp Induction Motor Specification

    Basics Model ATORS124D02 ATORS124T12
    Enclosure ODP TEFC
    Type General Purpose Asynchronous Motor
    Item Weight 23 Ibs
    Motor Length 12.7 inch
    Frame 56 Frame
    Design NEMA Design B
    Certification CE, UL
    Motor Material Roll Steel
    Technical Parameters Service Factor 1.25
    Horsepower 1/2 hp
    Rated Frequency 60 Hz
    Phase Split Phase
    Pole 4 pole
    Voltage 115/230V AC
    Full Load Amps 6.4/3.2A
    Speed 1725 RPM
    Efficiency 69%
    Duty Continuous
    Isulation Class Class F
    Protection Class IP54/ IP55
    Mounting Method Foot Mounted
    Environment Ambient temperature -15℃≤θ≤40℃
    Altitude Altitude should be lower than 1000 meters above sea level

    1/2 hp Induction Motor Dimension

    1/2 hp AC Single Phase Induction Motor Dimension

    Unit: inch

    Frame Size AB BA Max A Max B C D E 2F H N N-W O P R S U Min V Min ES Min AA
    56 5.6 2.75 6.5 4.2 11.4 3.5 2.44 3 0.34 2.4 1.88 6.7 6.45 0.517 0.188 0.625 1.5 1.41 1/2

    NEMA AC Induction Motor Connection Diagram

    Nema induction motor connection diagram


    1/2hp NEMA AC Induction Motor Details

    Tips: The Structural Difference between Synchronous Motor and Asynchronous Motor
    The stator structural component of synchronous motor is basically the same as that of the asynchronous motor, performing the function of receiving, outputting electric energy and generating rotating magnetic field. Their structures and formats have no great differences. The stators of both synchronous motor and asynchronous motor are constituted by stator core of magnetic conductive, three-phase AC winding of electricity conducive, base of fixing iron core and end caps and so on.
    Asynchronous motor: The rotor is constituted by iron core and winding. The rotor is overlaid by steel sheets and then pressed and installed on the revolving shaft. It mainly constitutes the cage-type rotor and wire-wound rotor. Wire-wound asynchronous motor still has slip ring and electric brush structures.
    Synchronous motor: The magnetic core of rotor is punched by steel plate into sheets and then overlaid. The magnetic core is jacked with field winding, which is wound by insulating copper wire. The permanent magnet of permanent magnet synchronous motor is the key element making it different from other motors.
