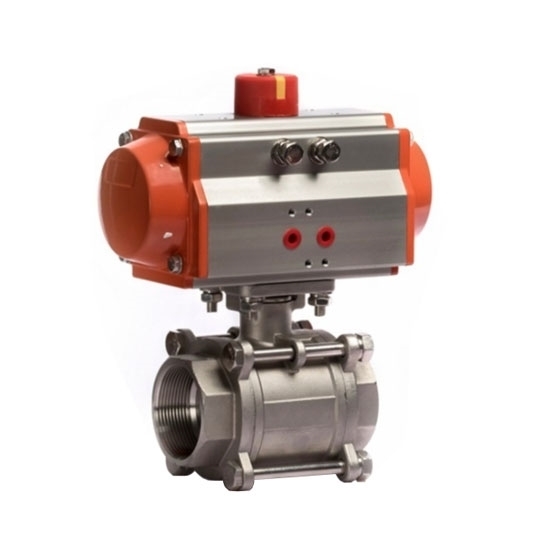

    1/2" Pneumatic Ball Valve, 2 Way/ 3 Way

    $144.99
    Affordable price 1/2 inch full port ball valve with an actuator for delivering water, gas, gasoline and other fluids. This pneumatic actuated ball valve powered by compressed air, with DN15 port size, stainless steel and PVC material, available threaded type, flanged type and true union type, perfect for air and fluid control.
    SKU: ATO-PBV-15A
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Compact pneumatic actuated ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. This air powered ball valve is made from high performance PVC or stainless steel, allowing it to service different medium from low to high temperature. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air and fluid control.

    Specification

    Ball Valve Model ATO-PBV-15A
    Ball Valve Type (Optional) 2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
    Port Size 1/2 inch (DN15, 15mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 316/ 304), PVC
    Pneumatic Actuator Model ATO-AT050D ATO-AT063D
    Bore Size 50mm 63mm
    Air Supply Port 1/8 inch 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Pressure Range ≤1000PSI (6.9MPa)
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy

    Note: 3 way flanged ball valve matches with ATO-AT063D pneumatic actuator, other ball valves match with ATO-AT050D pneumatic actuator.

    Body Dimension (Unit: mm)

    2 way/ 3 way, stainless steel, threaded type

    2 way 3 way stainless steel threaded type pneumatic ball valve dimension

    φd L1 A H1 L2 H2
    15 72 146 139 68 115

    2 way/ 3 way stainless steel, flanged type

    2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    15 130 14 2 95 45 65 150 166 146 167 150 4-φ14

    2 way, PVC true union type

    2 way PVC pneumatic ball valve dimension

    DN D D1 d L1 A H
    15 20 31 13 15 146 175


    Pneumatic Actuator Dimension (Unit: mm)

    Pneumatic actuator dimension

    ATO-AT050D

    Q A B C D E F G H I
    Φ36/Φ50mm 146mm 70mm 30mm 40mm 96mm 69mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/8" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT063D

    Q A B C D E F G H I
    Φ36/Φ50mm 167mm 82mm 35mm 47mm 113mm 85mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm


    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    Tips: Threaded type pneumatic ball valve features

    • The fluid resistance is small, and its resistance coefficient is equal to the pipe section of the same length.
    • Simple structure, small size and light weight.
    • The sealing material of the ball valve is plastic, which has good sealing performance. The threaded ball valve also is widely used in vacuum systems.
    • Convenient operation, quick opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for long-distance control.
    • The maintenance is convenient, the ball valve has a simple structure, the sealing ring is generally movable, and it is more convenient to disassemble and replace.
    • When fully open or fully closed, the sealing surfaces of the sphere and the valve seat are isolated from the medium, and the sealing surface of the valve will not be eroded when the medium passes through.
    • It has a wide range of applications and can be applied from high vacuum to high pressure.
