    4" Pneumatic Ball Valve, 2 Way/ 3 Way

    $549.99
    Factory price 4 inch 2 way, 3 way full port ball valve with pneumatic actuator requires compressed air to work. Air actuated ball valve comes with 100mm (DN100) fluid port, stainless steel or PVC body material, selectable threaded type, flanged type and PVC true union type, best for water, gas, oxygen and other air and fluid control.
    SKU: ATO-PBV-100A
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    4 inch industrial pneumatic actuated ball valve requires compressed air to work. The seat material is made from PTFE plastic that has good sealing performance. Air powered ball valve has such advantages as small fluid resistance, simple structure, small in size and light in weight. It is widely used for water, oxygen, gas, nitrogen gas, gasoline and other air fluid control.

    Specification

    Ball Valve Model ATO-PBV-100A
    Ball Valve Type (Optional) 2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Flanged Type
    Port Size 4 inch (DN100, 100mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 316/ 304), PVC
    Pneumatic Actuator Model ATO-AT100D ATO-AT125D ATO-AT145D
    Bore Size 100mm 125mm 145mm
    Air Supply Port 1/4 inch 1/4 inch 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Pressure Range ≤1000PSI (6.9MPa)
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy

    Note: 2 way threaded type and flanged type ball valve match with ATO-AT125D pneumatic actuator, 2 way PVC ball valve matches with ATO-AT100D pneumatic actuator, and 3 way flanged type ball valve matches with ATO-AT0145D pneumatic actuator.

    Body Dimension (Unit: mm)

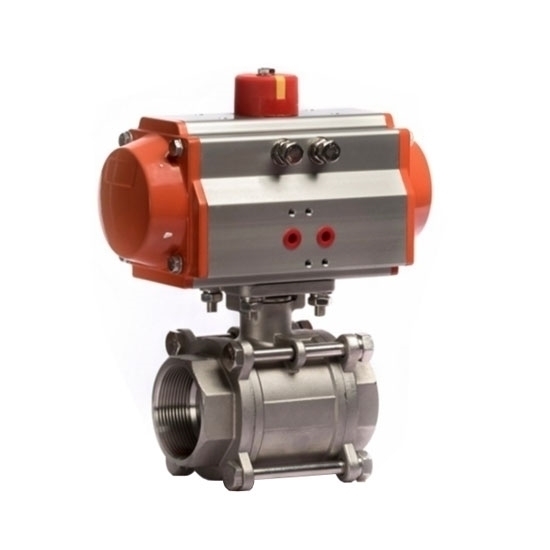

    2 way/ 3 way, stainless steel, threaded type

    2 way stainless steel threaded type pneumatic ball valve dimension

    φd L A H
    98 266 349 315

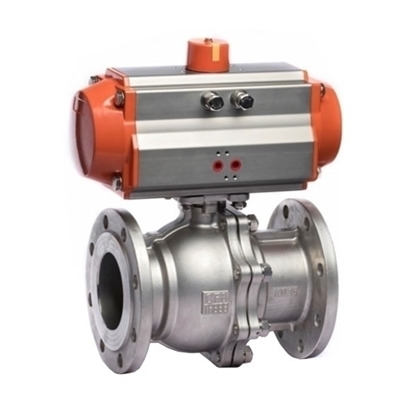

    2 way/ 3 way stainless steel, flanged type

    2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    100 280 20 2 215 155 180 323 344 349 418 320 8-φ18

    2 way, PVC true union type

    2 way PVC pneumatic ball valve dimension

    DN D D1 d L1 A H
    100 110 146 99 45 268 387


    Pneumatic Actuator Dimension (Unit: mm)

    Pneumatic actuator dimension

    ATO-AT100D

    Q A B C D E F G H I
    Φ70/Φ102mm 268mm 120mm 55mm 65mm 157mm 125mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT125D

    Q A B C D E F G H I
    Φ70/Φ102mm 349mm 147mm 67mm 80mm 189mm 159mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 30mm 56.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT145D

    Q A B C D E F G H I
    Φ102/Φ125mm 418mm 167mm 80mm 87mm 218mm 178mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 30mm 62mm 4mm 4mm 12mm 24mm 16mm 32mm


    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    Tips: How to maintain a pneumatic actuated valve?

    • The pneumatic actuated ball valve should be placed in a ventilated and dry room, so as not to enter the interior and cause debris and wear.
    • Check and clean the air ball valve regularly, and apply anti-rust oil after cleaning.
    • After the pneumatic ball valve is installed, regularly check whether it is working properly.
    • In order to ensure the normal operation of the pneumatic ball valve, lubricating oil should be injected into the ball valve regularly.
