    8" Pneumatic Flanged Ball Valve, 2 Way/ 3 Way

    $4,158.79

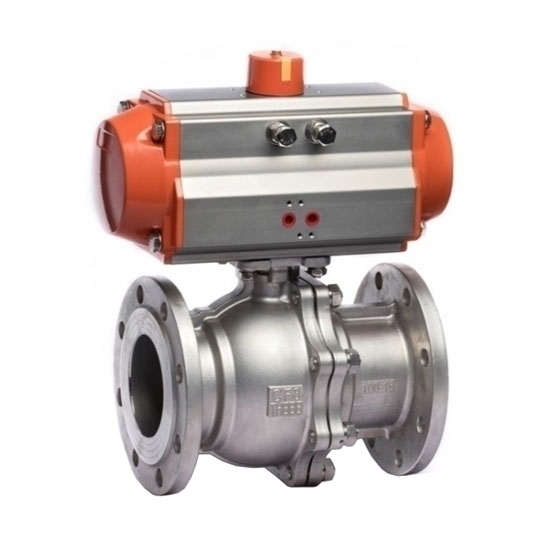

    Flanged type pneumatic actuated ball valve for sale at factory price, it comes with 6 inch fluid port and 1/4 or 3/8 inch air supply port, stainless steel body material, high performance PTFE plastic seat, optional 2 way or 3 way. Industrial air powered ball valve is widely used for water, gas, oxygen and other air and fluid control.
    SKU: ATO-PBV-200A
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

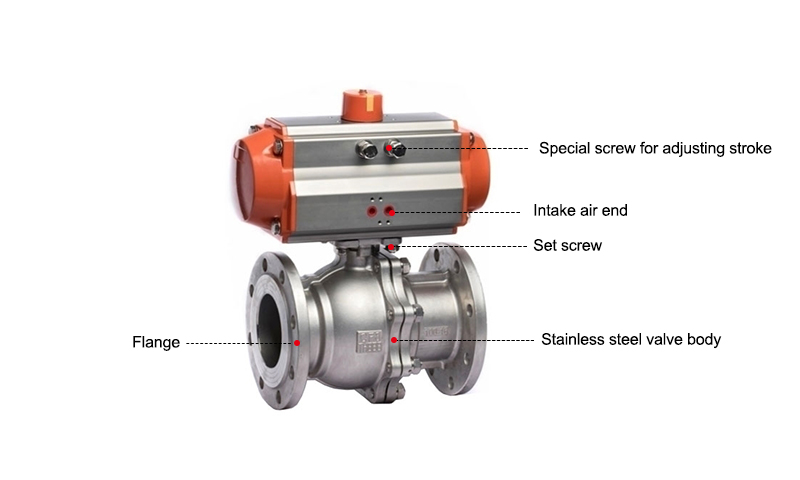

    Industrial 8 inch 2 way or 3 way pneumatic flanged ball valve with high performance actuator for sale online. Air actuated ball valve comes with stainless steel body material is perfect for water, gas control and other high temperature fluid transfer.

    Specification

    Ball Valve Model ATO-PBV-200A
    Ball Valve Type (Optional) 2 Way Flanged Type, 3 Way Flanged Type
    Port Size 8 inch (DN200, 200mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 316/ 304), PVC
    Pneumatic Actuator Model ATO-AT210D ATO-AT240D
    Bore Size 210mm 240mm
    Air Supply Port 1/4 inch 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Pressure Range ≤1000PSI (6.9MPa)
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy

    Note: 2 way flanged type ball valve matches with ATO-AT210D pneumatic actuator, and 3 way flanged type ball valve matches with ATO-AT240D pneumatic actuator.

    2 Way/ 3 Way Flanged Ball Valve Body Dimension (Unit: mm)

    2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    200 400 26 3 335 265 295 522 540 530 660 550 12-φ22


    Pneumatic Actuator Dimension (Unit: mm)

    Pneumatic actuator dimension

    ATO-AT210D

    Q A B C D E F G H I
    Φ140mm 530mm 226mm 113mm 113mm 297mm 257mm 30mm 130mm PF
    J K O P S T U V W X
    M6 1/4" 30mm 90mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT240D

    Q A B C D E F G H I
    Φ165mm 660mm 258mm 129mm 129mm 331mm 291mm 30mm 130mm PF
    J K O P S T U V W X
    M6 3/8" 90mm 62mm 4mm 4mm 20mm 40mm 22.5mm 45mm


    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    How to solve the leakage problem of pneumatic ball valve seal?

    • Remove the screws, clean the pressure ring, replace the damaged parts, grind the sealing surface and the sealing surface of the connecting seat, and reassemble.
    • For parts with large rust damage, it can be repaired by welding, bonding and other methods.
    • The sealing ring of the pneumatic ball valve should be repaired according to the welding specification.
    • When the surfacing welding cannot be re-welded, the corroded connection surface of the original surfacing sealing ring should be removed, and it can be repaired by grinding, bonding and other methods.
    • The sealing and rolling leakage of the pneumatic ball valve should be fixed by rolling again with adhesive.
