    3" Pneumatic Ball Valve, 2 Way/ 3 Way

    $246.89
    Cost-effective 3 inch pneumatic ball valve with 1/4 inch air supply port, is powered by compressed air. This air ball valve equipped with pneumatic actuator can transfer water, gas, oxygen and other air and fluid. High performance and reliable plastic seat, selectable ball valve type of threaded, flanged and PVC true union.
    SKU: ATO-PBV-80A
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

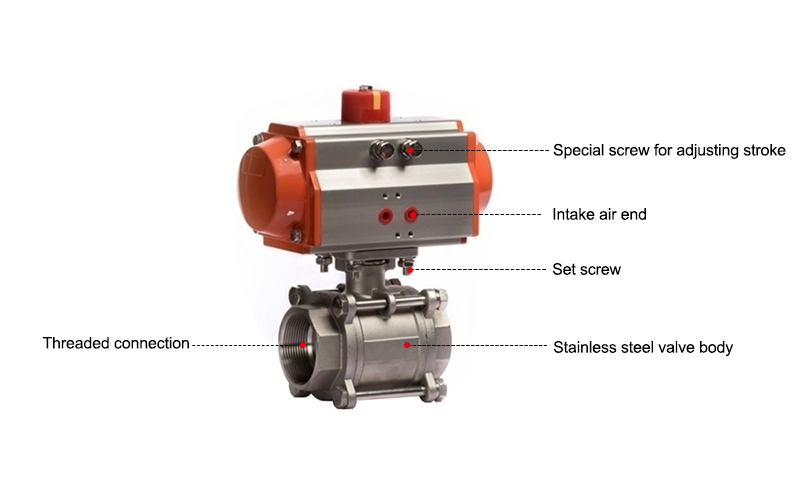

    Industrial 3 inch ball valve with pneumatic actuator requires compressed air to work, which has such advantages as small fluid resistance, simple structure, high performance and reliable sealing. It has been widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

    Specification

    Ball Valve Model ATO-PBV-80A
    Ball Valve Type (Optional) 2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Flanged Type
    Port Size 3 inch (DN80, 80mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 316/ 304), PVC
    Pneumatic Actuator Model ATO-AT088D ATO-AT100D ATO-AT125D
    Bore Size 88mm 100mm 125mm
    Air Supply Port 1/4 inch 1/4 inch 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Pressure Range ≤1000PSI (6.9MPa)
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy

    Note: 2 way threaded type and flanged type ball valve match with ATO-AT100D pneumatic actuator, 2 way PVC ball valve matches with ATO-AT088D pneumatic actuator, and 3 way flanged type ball valve matches with ATO-AT0125D pneumatic actuator.

    Body Dimension (Unit: mm)

    2 way stainless steel, threaded type

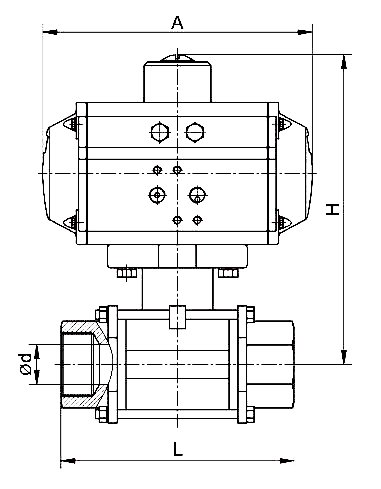

    2 way stainless steel threaded type pneumatic ball valve dimension

    φd L A H
    78 210 268 262

    2 way/ 3 way stainless steel, flanged type

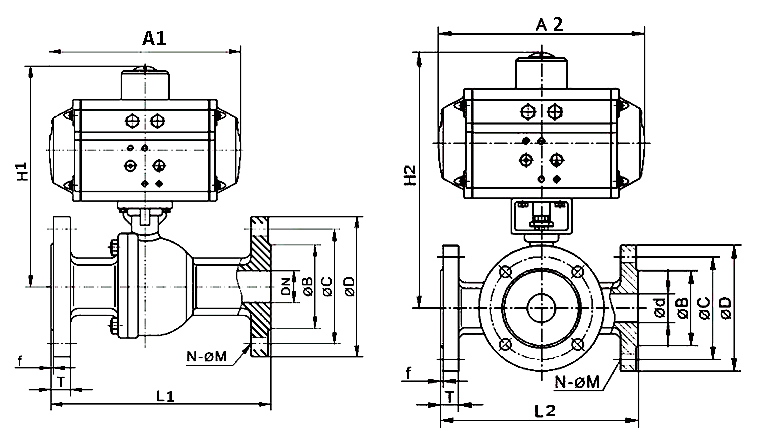

    2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    80 250 18 2 195 135 160 268 308 268 349 280 4-φ18

    2 way, PVC true union type

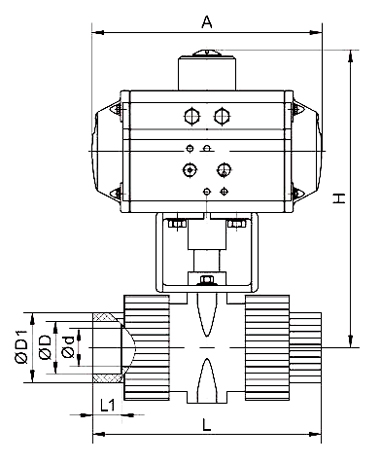

    2 way PVC pneumatic ball valve dimension

    DN D D1 d L1 A H
    80 90 108 69 35 250 332


    Pneumatic Actuator Dimension (Unit: mm)

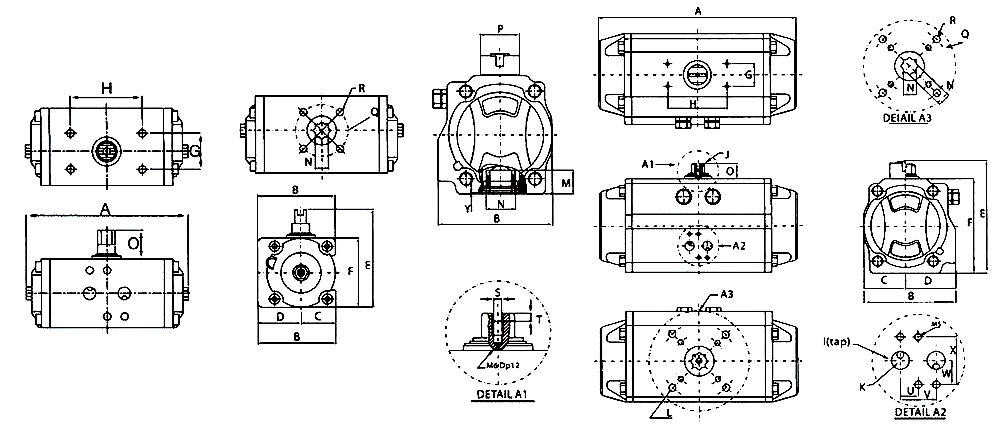

    Pneumatic actuator dimension

    ATO-AT088D

    Q A B C D E F G H I
    Φ50/Φ70mm 250mm 105mm 49.5mm 55.5mm 145mm 115mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT100D

    Q A B C D E F G H I
    Φ70/Φ102mm 268mm 120mm 55mm 65mm 157mm 125mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 30mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT125D

    Q A B C D E F G H I
    Φ70/Φ102mm 349mm 147mm 67mm 80mm 189mm 159mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 56.5mm 4mm 4mm 12mm 24mm 16mm 32mm


    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    Tips for selecting a 3 way pneumatic actuated ball valve

    When buying a 3 way pneumatic ball valve, you need to pay attention to the model, port size and body material.

    1. The model
      The applications of 3 way pneumatic ball valves are different, so the requirements for their models and parameters are also different. Clear the needs, and then determine which models of pneumatic ball valves meet your needs.
    2. Port size
      Depending on the location where the 3 way pneumatic ball valve is installed, the port size will also vary greatly. Once the port is not suitable, there is no way to continue the installation, and serious leakage may occur.
    3. Ball valve body material
      Copper pneumatic ball valve can be used in high temperature environment, and if it is used in corrosive medium, stainless steel pneumatic ball valve can be selected.
