    1/2 Inch Rc Air Pressure Regulator

    $205.67
    The air pressure regulator offers the highest level of adjustment accuracy and repeatability, port size 1/2 inch, other thread styles N and GPT can be customized. Excellent decompression effect, pilot exhaust port and main exhaust port, the outlet pressure is not affected by the inlet pressure and flow, and can keep the set outlet pressure constant.
    SKU: ATO-PR-NIR3000
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 10-12 days

    Pneumatic regulator with sensitive air pressure gauge, port size optional 1/2", 3/8" or 1/4", large output flow and overflow flow, g and NPT threads can be customized.

    Specification

    • Model: ATO-PR-NIR3000
    • Sensitivity: Within 0.2% of full span
    • Repeatability: Within ±0.5% of full span
    • Minimum Supply Pressure: Set pressure +0.05 Mpa
    • Set Pressure: 0.01~0.2/ 0.01~0.4/ 0.01~0.8 Mpa
    • Pressure Regulator Port Size: 1/4, 3/8, 1/2 inch Rc
    • Air Consumption: 11.5 L/min (ANR) or less
    • Ambient and Fluid Temperature: –5 to 60°C (No freezing)
    • Supply Pressure: 1.0 MPa
    • Weight: 1 kg
    • Certificate: CE

    Note: Air filter (AF) and oil mist separator (AM, AFM) need to be installed on the air supply side.

    1/2 Inch Air Pressure Regulator Dimension (Unit: mm)

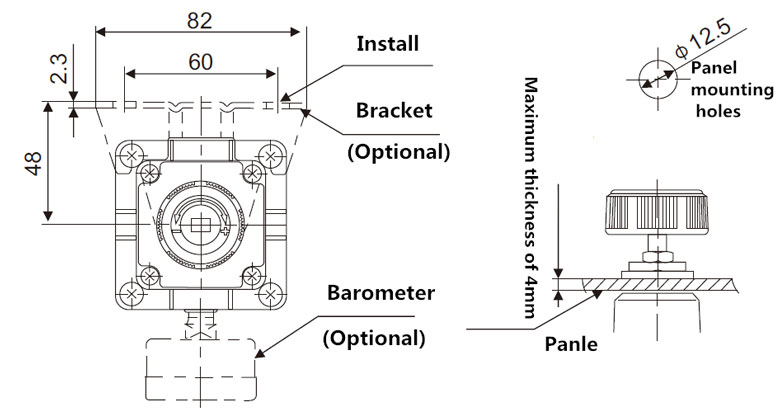

    Pneumatic regulator dimension

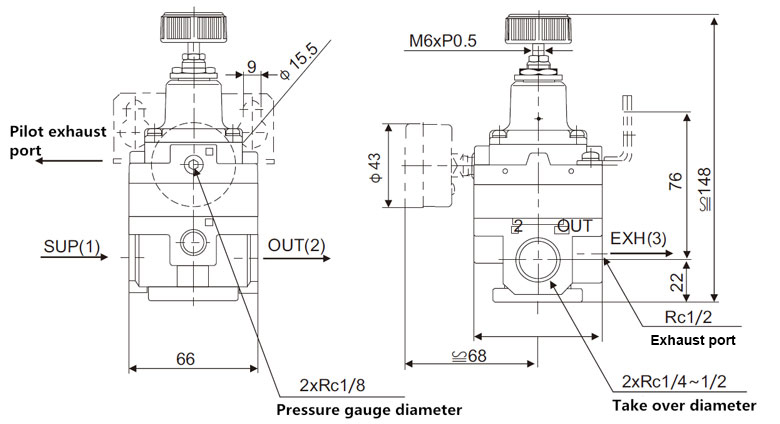

    Air pressure regulator valve dimension
    1/2  Inch Rc Pneumatic Regulator Detail

    Pneumatic regulator detail

    Tips: Features of ATO-PR-NIR3000 air pressure regulator

    • Small size and light weight.
    • Precise pressure setting.
    • The tooth spacing of the adjusting screw is changed from the traditional 0.75mm to 0.5mm
    • Easy to install, can be installed independently with brackets or combined with existing modular filters
    • AF and AFM can be installed directly.
    • Standard outgoing panel mount.
    • The pilot exhaust port is separate from the main exhaust port.
    • Can be used in clean room (specially noted product).
    • The ATO-PR-NIR3000 has a larger output flow than the traditional precision pressure reducing valve ATO-PR-NIR2000.
    • ATO-PR-NIR3000 has larger overflow flow than traditional precision pressure reducing valve ATO-PR-NIR2000.
