1/2" Spring Loaded Pressure Relief Valve, DN15

A pressure relief valve with DN15 nominal diameter, nominal pressure is 16 MPa. The pressure reducing valve automatically opens at a set pressure and provides proportional and slow pressure relief.

Features

• The pressure relief valve with a gas-tight and compact design which can be adjusted without disassembly.
• Compact size can choose horizontal or vertical installation, easy to install and maintain, simple and convenient to adjust the pressure and easy to operate.
• The active parts of the sealing ring such as the piston and valve sleeve are sprayed with Teflon material, which can effectively reduce the wear of the sealing ring and prolong the service life of the product.

Specification

• Model: ATO-YS713X-16P-15
• Size: 1/2 inch
• Nominal diameter: DN15
• Material: 304 stainless steel
• Import and export pressure ratio: Maximum 3: 1
• Working temperature: Cold water ≤65 ℃, hot water ≤95 ℃
• Nominal pressure: 16 MPa
• Medium: Drinking water, clean water

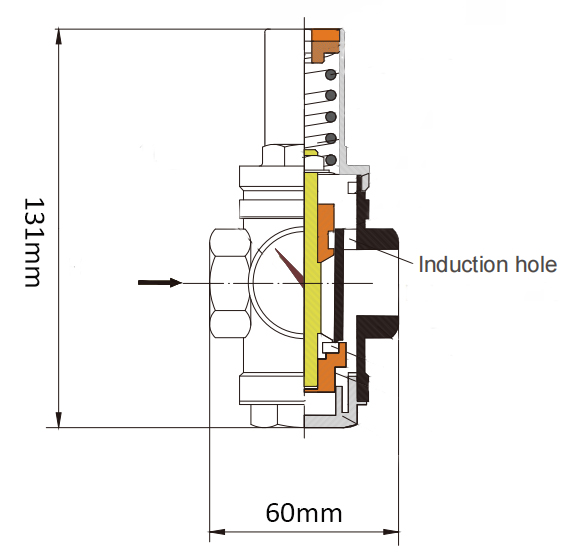

Dimension

Installation

Notes

• It is recommended to install an exhaust valve on the top of the riser to make the pressure reducing valve work more smoothly.
• Before installing the pressure relief valve, check the valve for unusual items and be sure to flush the pipeline.
• Installation method: Horizontal or vertical installation, single valve set.

Pressure Relief Valve Application

Tips: Does a pressure relief valve reduce flow?

Yes, the purpose of a pressure relief valve is to control or limit surges of pressure within pipelines, acting as protection for the system, and defending against instrument or equipment failure. But this only occurs when pressure exceeds the set pressure. During normal operation, pressures should not exceed the set level, and the relief valve remains closed.
