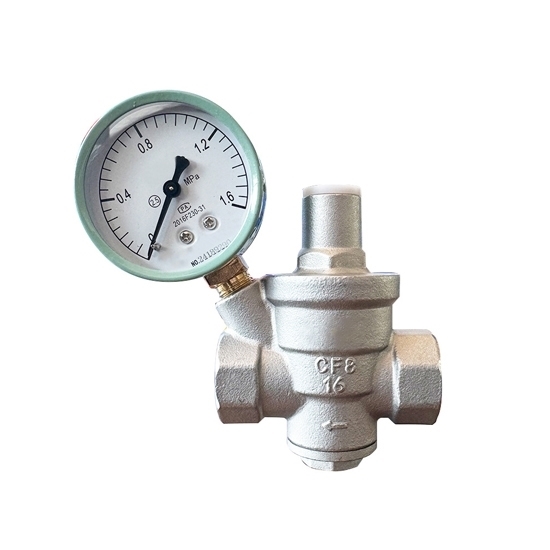

1 1/4" Spring Loaded Pressure Relief Valve, DN32

Note: This pressure relief valve cannot be used for drinking water.

1-1/4 inch (DN32) pressure relief valve for sale. The adjustable pressure relief valve is used to limit or control the pressure in a system, to prevent major damage to equipment and injury to workers.

Features

• The pressure relief valve accurately controls the dynamic and static pressure, and does not fluctuate due to changes in upstream pressure.
• Its dual piston has a large flow rate (about 3 times that of common similar valves) and low flow noise. This valve is made of stainless steel, which is high-strength and environmentally friendly.
• The internal structure of the spring loaded pressure relief valve is compact and reasonable, saving a lot of installation space.
• The installation environment requirements are simple, the pressure adjustment is wide, and the optimal water supply pressure can be adjusted on site without professional operation.

Specifications

• Model: ATO-Y13X-16P
• Connection Method: Internal Thread
• Material: Stainless Steel 304
• Pressure Level: 1.6Mpa
• Size: 1-1/4 inch (DN32)
• Using Temperature: 0-80℃
• Applicable Media: Water, Oil, Normal Temperature Gas
• Pressure Specification: Sealing PN=1.76MPa; Strength PN=2.4MPa
• Total Valve Height: 165mm
• Total Valve Length: 90mm
• Application: Applicable to water supply and drainage pipeline systems in power, urban construction and other industries.

Installation Precautions

1. For easy operation and maintenance, the pressure relief valve is generally installed upright on a horizontal pipe.
2. During installation, care should be taken to ensure that the flow direction of the medium in the pipeline is consistent with the direction of the arrow shown on the valve.
3. In order to prevent the valve from being blocked by debris, a filter should be installed at the front end of the pressure relief valve.
4. In situations where the supply cannot be interrupted, a bypass valve should be provided or a dual-circuit method should be used, one for use and one for backup.
5. When passing water for the first time, care should be taken to exhaust the air in the pipeline to avoid false pressure, to protect the pressure gauge and obtain the correct pressure.

Pressure Relief Valve Applications

Tips: Why choose a pressure relief valve?

Although the water flows through the pressure reducing valve has a large head loss, it is still energy-saving in general because it reduces the waste of water, makes the system flow distribution reasonable, and improves the system layout and working conditions. Where the medium is steam, a pilot piston pressure reducing valve or a pilot bellows pressure reducing valve should be selected. For the convenience of operation, adjustment and maintenance, the pressure relief valve should generally be installed on the horizontal pipeline.
