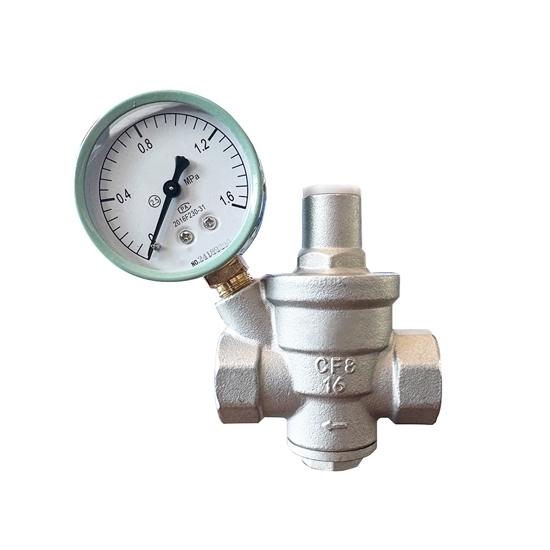

1" Spring Loaded Pressure Relief Valve, DN25

ATO pressure relief valve with DN25 nominal diameter, the valve is made of 304 stainless steel, nominal pressure is 16 MPa. This spring holds a pre-set tension on the valve seat installed with a pressure equalizing mechanism for precise water pressure control.

Features

• The pressure relief valve with a gas-tight and compact design which can be adjusted without disassembly.
• Compact size can choose horizontal or vertical installation, easy to install and maintain, simple and convenient to adjust the pressure and easy to operate.
• The active parts of the sealing ring such as the piston and valve sleeve are sprayed with Teflon material, which can effectively reduce the wear of the sealing ring and prolong the service life of the product.

Specification

• Model: ATO-YS713X-16P-25
• Size: 1 inch
• Nominal diameter: DN25
• Material: 304 stainless steel
• Import and export pressure ratio: Maximum 3: 1
• Working temperature: Cold water ≤65 ℃, hot water ≤95 ℃
• Nominal pressure: 16 MPa
• Medium: Drinking water, clean water

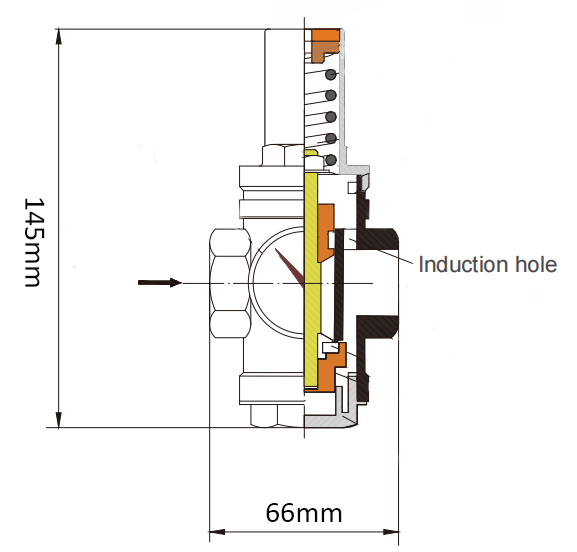

Dimension

Installation

Notes

• It is recommended to install an exhaust valve on the top of the riser to make the pressure reducing valve work more smoothly.
• Before installing the pressure relief valve, check the valve for unusual items and be sure to flush the pipeline.
• Installation method: Horizontal or vertical installation, single valve set.

Pressure Relief Valve Application

Tips: How does a pressure relief valve work?

The pressure relief valve adjusts the flow of the medium by controlling the opening of the opening and closing parts in the valve body and reduces the pressure of the medium. Inside, spray cooling water into the valve body or behind the valve to reduce the temperature of the medium. This valve is called a pressure reducing and temperature reducing valve. The characteristic of this valve is to keep the outlet pressure and temperature within a certain range under the condition of constant change of inlet pressure.
