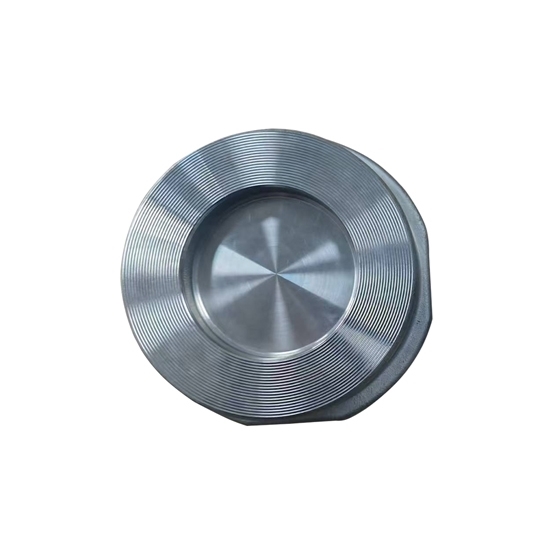

    1/2" Stainless Steel Wafer Check Valve

    5 out of 5 based on 1 reviews | Write a review
    High quality wafer check valve for sale online. 1/2 inch check valve with 304/316 stainless steel, DN 15 and PN 4 MPa, disc structure, usually used in space limited applications such as HVAC systems, water treatment plants and industrial processes.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Quality wafer check valve is used to regulate and control the flow of fluid through a pipeline while preventing backflow. 1/2" stainless steel wafer check valve, DN15 and PN 4 MPa can transfer water and oil, low maintenance, long life, lightweight, suitable for aerospace or marine applications.


    • Model: ATO-H71W
    • Check Valve Type: Wafer
    • Nominal Diameter: 1/2 inch (15mm)
    • Nominal Pressure: 4 MPa
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Clip
    • Temperature Range: -20°C~180°C
    • Weight: 0.22kg
    • Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid


    Wafer check valve dimensions

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 DISC CF8/CF8M 1
    3 SPRING S201/S304 1
    4 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    Φd D D1 L±1.5
    14 49 54 29


    Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

    Wafer check valve application

    Tips: What is a wafer check valve?

    A wafer check valve is a type of check valve that is used to prevent the reverse flow of fluids in pipelines. It is called a "wafer" check valve because it is designed to fit between two pipe flanges, making it compact and easy to install.

    The wafer check valve operates by allowing fluid to flow in one direction while preventing flow in the opposite direction. It consists of a disc that moves up and down in response to the fluid flow. When the fluid flows in the desired direction, the disc moves up and allows the fluid to pass through. When the fluid tries to flow in the reverse direction, the disc is pushed down by the fluid pressure and seals against the valve body, preventing backflow.

    Wafer check valves are typically made of materials such as cast iron, stainless steel, or PVC. They are used in a variety of applications, including HVAC systems, water and wastewater treatment, oil and gas pipelines, chemical processing plants, and the food and beverage industry.

    Overall, the compact design and reliable operation of wafer check valves make them a popular choice for preventing backflow in pipelines and ensuring that fluids flow in the desired direction.
