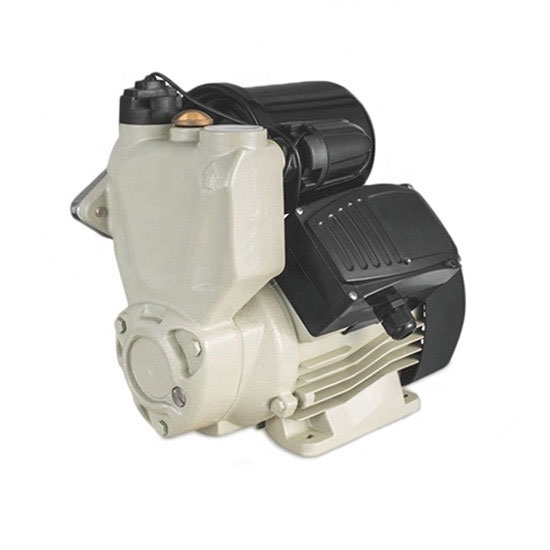

    1.5 HP (1.1 kW) Automatic Water Pressure Booster Pump

    5 out of 5 based on 3 reviews | Write a review
    Favorable price 1.5 HP (1.1kW) automatic water pressure booster pump for sale, single phase, 220V-240V, 50Hz, 1-1/2 in. water inlet and outlet, max. head 54m, max. flow 84 LPM. This self-priming pump accepts cold and hot water, which can be used for bathroom, washing machine, water purifier and garden hose at home.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1-1/2 HP (1.1 kW) water pressure booster pump is a combination of motor, pump, pressure tank, pressure switch, flow sensor switch and electronic controller for the integration of automatic water supply system. It widely used in house, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.


    Model ATO-40WZB-1100A
    Power 1.5 HP (1.1 kW)
    Voltage (AC) 220V-240V
    Frequency 50Hz
    Phase Single Phase
    Max. Flow 84 L/min
    QMax 4.3 - 4.5 m3/h
    Max. Head 54m
    Max. Suction 9m
    Inlet Diameter 1-1/2 inch
    Outlet Diameter 1-1/2 inch
    Pump Max. Liquid Temperature +0 ~ +80℃
    Liquid PH Valve 6.5 - 8.5
    Material Cast Iron Body and Support
    Motor Max. Ambient Temperature +40℃
    Insulation Class B or F
    Protection IP x 4
    Cooling External Ventilation
    Shaft Stainless Steel Welded Shaft/45# Steel Shaft
    Packing Dimension 365mm * 270mm * 365mm
    Weight 19.5kg


    Details of 1.5 HP (1.1kW) Automatic Water Booster Pump


    1.5 HP (1.1 kW) Single Phase Automatic Water Booster Pump Applications

    Tips: What are the advantages of ATO automatic water booster pump?

    • ATO automatic water booster pump has rust-free copper inserts to prevent impeller's block when starting after the pump is unused for a long time.

    • It has long life span with small size, high efficiency and low power consumption.

    • Its noise less than 35dB, can be used for cold and hot water circulation.

    • The stator and circuit board of the motor are sealed with epoxy resin and completely isolated from the rotor, which solves the problem of water leakage caused by the motor type DC water booster pump for a long time. It is completely waterproof, which can be installed underwater.

    Existing reviews of 1.5 HP (1.1 kW) Automatic Water Pressure Booster Pump
    Well worth the money.
    I used this automatic booster pump as a whole home booster. It works great! So far so good. Easy enough to install if you can manage basic plumbing. Excellent booster pump, well worth the money.
    From: Aaron | Date: 25/05/2022
    Was this review helpful? Yes No (0/0)
    Excellent automatic booster pump.
    I used this 1.1 kW automatic booster pump to boost water pressure in my house. It was easy to install. Worked great. Neighbors have looked at it and two have recently purchased same for their home water system. Nice unit!
    From: Fredrik | Date: 18/05/2022
    Was this review helpful? Yes No (0/0)
    Highly recommend 1.5hp automatic water booster pump
    Purchased as a 1.5hp automatic water booster pump to increase pressure for washer and shower. It was easy to install and works great. An immediate boost to the shower and taps pressure. When it works, the sound is very small, and you can hardly feel its existence.
    From: Musico | Date: 21/06/2021
    Was this review helpful? Yes No (0/0)
