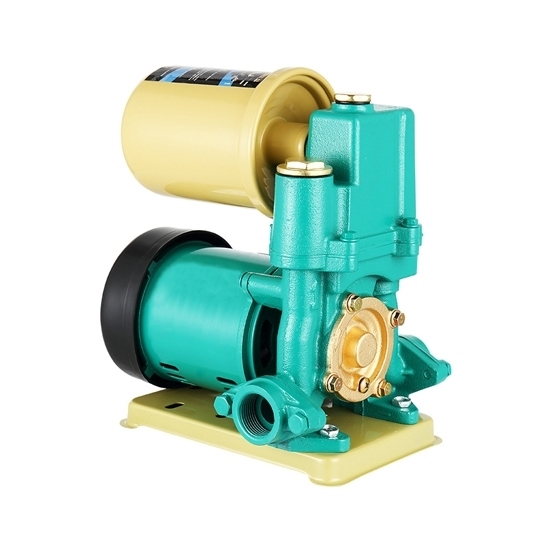

    0.5 HP (0.37 kW) Automatic Water Pressure Booster Pump

    5 out of 5 based on 4 reviews | Write a review
    $297.94
    Small automatic water booster pump for house, 0.5 HP (0.37 kW), single phase or 3 phase, optional voltage 220V / 380V, rated current 370A, 1 in. water inlet and outlet, max. head 40m, max. flow 30 LPM, comes with motor to increase water pressure.
    *
    SKU: ATO-BP-05HP
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1/2 HP (0.37 kW) water booster pump with motor is used to increase the pressure of water. It accepts cold and hot water, which is suitable for home use, sprinkler and irrigation system, small air conditioner system, and washing machine, etc.

    Specification

    Model ATO-PQT-370A
    Power 0.5 HP (0.37 kW)
    Voltage (AC) 220V / 380V
    Phase Single Phase / 3 Phase
    Max. Flow 30 L/min
    Max. Head 40m
    Rated Flow 32m³/h
    Rated Head 35m
    Max. Suction 9m
    Inlet Diameter 1 inch
    Outlet Diameter 1 inch
    Pump Max. Liquid Temperature 35℃ or 60℃
    Max. Suction +8m
    Material Brass Impeller with Evenly Arranged Radial Vanes
    Motor Max. Ambient Temperature +40℃
    Insulation Class B or F
    Protection IP x 4
    Cooling External Ventilation
    Shaft Stainless Steel Welded Shaft/45# Steel Shaft
    Packing Dimension 290mm * 250mm * 310mm
    Weight 15kg

    Applications

    1.5 HP (1.1 kW) Single Phase Automatic Water Booster Pump Applications

    Details

    Automatic Water Pressure Booster Pump Details

    Tips: Automatic water booster pump troubleshooting

    Faults Reasons Solutions
    The booster pump runs but no water output.
    • The water in the pump is not full.
    • Wrong direction of rotation.
    • The impeller passage is blocked.
    • Inject water into the pump again.
    • Drain the impeller passage.
    • Adjust the direction of rotation.
    The booster pump flow is insufficient.
    • The pump is blockage.
    • Low revolution.
    • The impeller is damage.
    • The outlet valve opening is too large.
    • Clean the pump and tube.
    • Replace the impeller.
    • Add shaft revolution.
    • Turn down the outlet valve.
    The pressure of the outlet is insufficient.
    • There is air in the liquid.
    • Low revolution.
    • The impeller is damage.
    • The outlet valve opening is too large.
    • Expel air from the liquid.
    • Replace the impeller.
    • Add shaft revolution.
    • Turn down the outlet valve.
    The booster pump consumes too much power (motor heating).
    • Mechanical defects: Running clearance is too small; the motor shaft is bent; bolts looseness.
    • The booster pump operates well below the rated head.
    • Check the mechanical parts and solve the problems in time.
    • Adjust the outlet valve to make sure the pump works near the rated flow and rated head.
    The booster water pump vibration.
    • The piping system is not well supported.
    • The impeller is blocked causing imbalance and cavitation effect.
    • There is air in the liquid.
    • Check the support part of the pump.
    • Tighten the bolts.
    • Drain the impeller passage to make it balance.
    • Expel air from the liquid.
    The booster pump is water leakage.
    • The mechanical sealing is damage.
    • The O-ring is damage.
    • The pump itself is water leakage.
    • Replace the mechanical sealing and O-ring.
    • Welding the pump body where it leaks.
    Excessive pump noise.
    • The bearing is overheating and lack of oil.
    • The booster pump is overload.
    • Fill oil in the bearing.
    • Check the mechanical parts and solve the problems in time.
    Existing reviews of 0.5 HP (0.37 kW) Automatic Water Pressure Booster Pump
    Can we adjust the speed of motor of water pump?
    Sorry I don’t understand that variable speed means variable flow. And what is the purpose of variable?
    Can we adjust speed of the motor and is it a 3 phase motor?
    Is there a drive or can we operate it with a drive?
    Can I call you and which phone number?
    From: kamran | Date: 12/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, variable speed means variable flow. But the adjustment speed of single-phase water pump is very limited. If you want to adjust the speed and flow of the pump, we recommend that you use a three-phase 220V, 60Hz pump, and then cooperate with our single-phase 220V input and three-phase 220V output VFD.
    Could you please tell us what the head and flow requirements of your pump are? What is the specific flow range required for regulation?
    Please refer to: https://www.ato.com/1-hp-variable-speed-pool-pump
    https://www.ato.com/3hp-vfd
    Very easy to install.
    I got this automatic booster pump yesterday, it was very easy to install and very quiet. I used it to boost water pressure in my home water system, it worked great. I would buy again. I am very satisfied with this pump and I highly recommend it.
    From: Michael | Date: 19/05/2022
    Was this review helpful? Yes No (0/0)
    Great water booster pump.
    I bought this 0.5 HP automatic water booster pump for home use. Love the small size and ability to install in any direction. This pump is self-priming and have good pressure. Great water pump for the money. Highly recommend.
    From: Daniel | Date: 14/03/2022
    Was this review helpful? Yes No (0/0)
    Great automatic water booster pump
    I am pleased with this 0.5 HP automatic water booster pump. It works as described and has not failed since installation. This pump is quieter than most pumps. It is perfect and easy to install for a garden system with rainwater collection.
    From: Amazon | Date: 12/07/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
