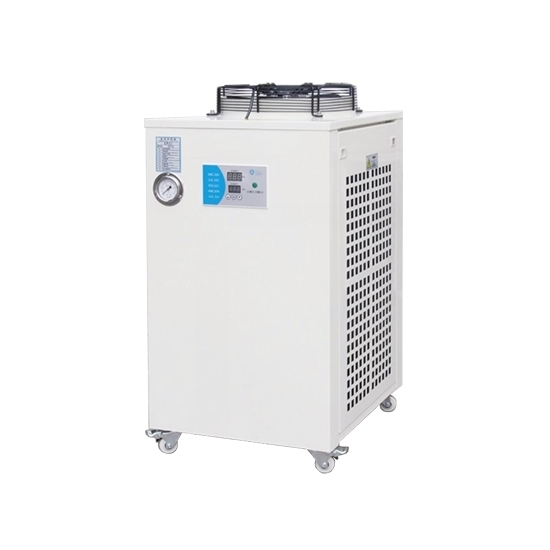

    1.5 Ton Air Cooled Industrial Water Chiller

    $3,640.84
    1.5 ton refrigeration capacity industrial water chiller with high quality and good price, single phase 220V at 50/60Hz, air cooling type, equiped famous high efficiency compressor and electric temperature contoller. Intelligent and constant operation modes are available for various temperature environments.
    SKU: ATO-IWC-1D5T
    *
    Delivery date: 10-20 days

    Hot sell single phase small 1.5 ton water chiller has the advantages of smooth and reliable operation, higher efficiency and lower vibration noise, convenient maintenance and long life. It is applicable to the industry that requires flow of precisely controlled chilled water and considered as indispensable equipment for modern industry.

    Features

    • Air-cooled industrial water chiller has refrigerating capacity up to 1.5 ton (5276W).
    • Double digital display, set temperature and real-time temperature at a glance.
    • Full power refrigeration, micro refrigeration, suitable for a variety of working conditions.
    • Intelligent and constant operation modes are available for various temperature environments.
    • High precision temperature control, the fluctuation can be controlled within 0.5 ℃.
    • With over temperature alarm, sensor fault self diagnosis function.
    • With compressor over-current overload protection, water flow alarm function.
    • It has anti-freeze function and can better protect machine waterway components in the low temperature environment.

    Parameter List

    Model ATO-JL7500PA ATO-JL7500PB
    Input Voltage Single phase 220V Single phase 220V
    Working Current 1.5-11A 1.5-10A
    Input Frequency 50Hz 60Hz
    Compressor Power (±3%) 1500W 1570W
    Refrigeration Capacity 1.5 ton
    Input Power 2300W
    Pump Voltage / Power 220V DC / 370W
    Cooling Type Air cooled
    Max. Lift 29M
    Max. Flow 2m3/h
    Refrigerant Type Default R22 (1R34A, R407C, R401A, R404A or other types can be sustomized, just confirm us by email)
    Inlet and Outlet 40mm inner teeth
    Max. Capacity of Tank 20L
    Machine Demension 700*520*1060mm
    Net Weight 90kg

    Water Chiller Front Side Details

    1 ton water chiller front side detail features

    Water Chiller Back Side Details

    1 ton water chiller back side detail features

    Tips: How does a industrial water chiller work?

    The operation of industrial water chiller system works through three interconnected systems: Refrigerant circulation system, water circulation system and electrical automatic control system.

    1. Refrigerant circulation system:

    The liquid refrigerant in the evaporator absorbs the heat in the water and starts to evaporate. At last, a certain temperature difference is formed between the refrigerant and the water. The liquid refrigerant also completely evaporates into a gaseous state, which is then inhaled and compressed by the compressor (pressure and temperature increase). The gaseous refrigerant releases heat through the condenser and condenses into a liquid. After throttling through the expansion valve (or capillary), it turns into low temperature and low pressure refrigerant and enters the evaporator, completing the refrigerant circulation process.

    2. Water circulation system:

    The water pump is responsible for pumping the water from the water tank to the equipment to be cooled by the user. After the heat is taken away by the chilled water, the temperature rises and then returns to the chilled water tank.

    3. Electrical automatic control system:

    Including the power part and the automatic control part. The power supply part supplies power to the compressor, fan, water pump, etc. through the contactor.
    The automatic control part includes temperature controller, pressure protection, time delay device, relay, overload protection and other functions, which can automatically start and stop and protect the water temperature.
