1/8 inch Stainless Steel Needle Valve, DN6

Note: This needle valve cannot be used for drinking water.

ATO stainless needle valve is a compact 2-way stainless steel needle valve with 1/8 inch threads. This valve can be used as a reliable shut-off valve, or to accurately control (relatively low) flow rates of clean gases or fluids.

Specification

• Model: ATO-NV-DN6
• Size: 1/8 inch
• Connection thread size: DN6
• Needle valve diameter: 3mm
• Nominal pressure: 16 MPa
• Material: 304 Stainless Steel
• Working pressure: ≤420 bar
• Working temperature: -20~180℃
• Installation method: Screw connection
• Medium: Gas, liquid

Features

• Smooth and accurate flow control
• With a very compact design and reliable leak tight shut off
• High pressures up to 6000 psi
• Wide temperature range from -20 up to 180°C.
• Suited for aggressive fluids thanks to the 304 stainless steel

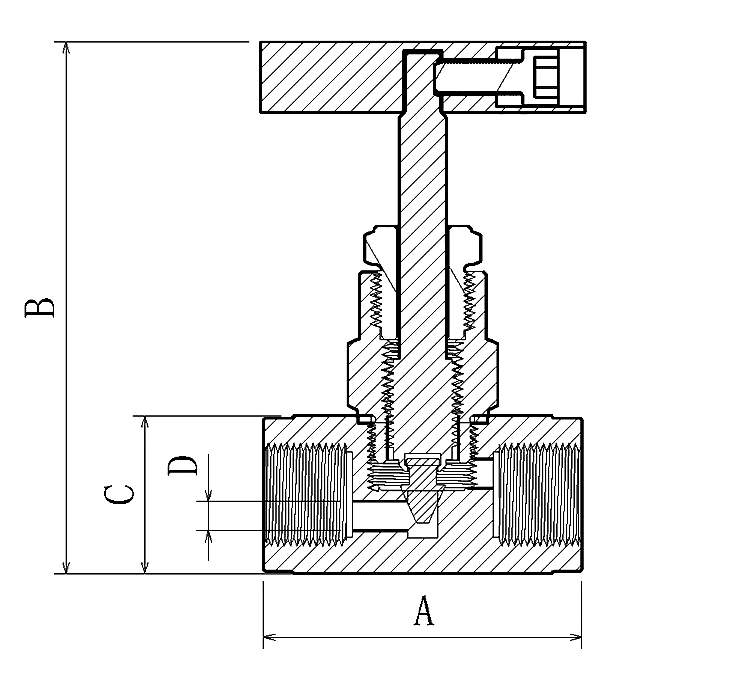

Dimension

Stainless Steel Needle Valve Application

Tips: What is a needle valve？

Needle valves, sometimes referred to as plunger valves, are regulating valves and enable engineers to finely control and regulate water flow and pressure. The precision is achieved through the fine movement of the shaft, which enables the gearbox to move the piston tube in a sliding motion towards the opening or closing position, depending on the requirements of the control system.
