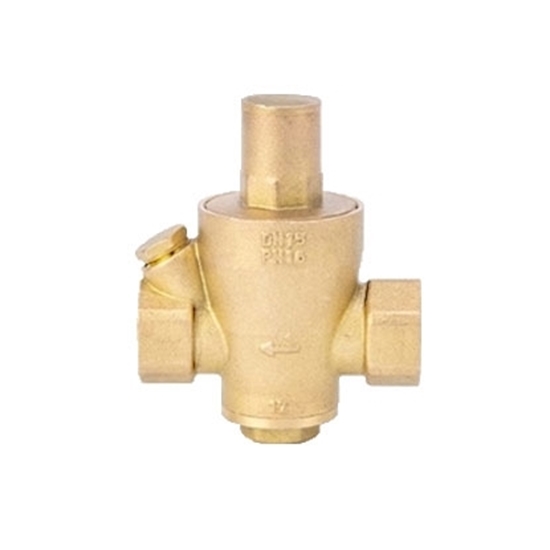

1 Inch Adjusting Water Pressure Regulator

Adjustable water pressure regulator for garden irrigation, size 1 inch, nominal pressure 1.6 Mpa, standard bore, large diameter, sufficient flow to meet garden irrigation needs, water pressure reducing valve with ergonomic design for comfort.

Specification

• Model: ATO-WPR-DN25
• Drive Mode: Hydraulic control
• Size: 1 Inch
• Nominal pressure: 1.6 Mpa
• Structure Type: Adjustable
• Mode of Action: Double acting
• Nominal diameter: DN 25mm
• Type (Channel Location): Straight through
• Function: Decompression type
• Connection Method: Thread
• Lining Material: Rubber
• Flow Direction: One way
• Working Pressure: 0.6 Mpa
• Operating Temperature: -20℃~+80℃

• Weight: 3.69kg

1 Inch Water Pressure Regulator Detail

Water Pressure Regulator Applications

Tips: Water pressure regulator types

There are two types of water pressure regulator: piston and diaphragm. The diaphragm type uses the opening degree of the opening and closing member of the control valve to regulate the flow of the medium and reduce the pressure of the medium, while regulating the opening degree of the opening and closing member with the help of the post-valve pressure to keep the post-valve pressure within a certain range. The type of pressure reducing valve and the accuracy of pressure regulation are selected according to the requirements of use, and then its diameter is selected according to the maximum output flow required. When deciding on the pressure of the gas source for the valve, it should be greater than the maximum output pressure of 0.1 MPa.
