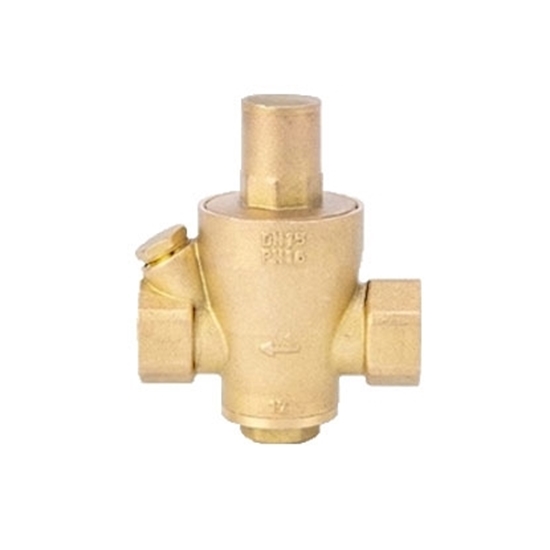

1-1/2 Inch Adjusting Water Pressure Regulator

Adjustable pressure reducing valve for garden hose, 1-1/2 inch, meets specification and site requirements for landscaping, residential domestic, central air conditioning, public fire protection, etc.

Specification

• Model: ATO-WPR-DN40
• Drive Mode: Hydraulic control
• Size: 1-1/2 Inch
• Nominal pressure: 1.6 Mpa
• Structure Type: Adjustable
• Mode of Action: Double acting
• Nominal diameter: DN 40mm
• Type (Channel Location): Straight through
• Function: Decompression type
• Connection Method: Thread
• Lining Material: Rubber
• Flow Direction: One way
• Working Pressure: 0.6 Mpa
• Operating Temperature: -20℃~+80℃

• Weight: 3.69kg

1-1/2 Inch Water Pressure Regulator Detail

Water Pressure Regulator Applications

Tips: Water pressure regulator structure and features

1. Water pressure regulator can reduce dynamic and static pressure
2. Water pressure regulator adopts direct acting diaphragm structure, the internal structure is very simple, no jamming, reliable performance, durable. Durable.
3. Dirty and water resistant, no filter, no bypass tube, extremely simple piping, can save a lot of space and piping costs. The piping is extremely simple and saves a lot of space and piping costs.
4. The outlet pressure is precisely adjustable, and in general, it can be considered that the outlet pressure is not affected by the inlet pressure.
   In general, the outlet pressure can be considered to be independent of the influence of the inlet pressure.
5. Excellent hydraulic characteristics, small pressure loss, pressure reduction ratio up to 10:1 or more.
6. Adjusting water pressure regulator can meet a variety of pressure reduction requirements, especially suitable for bypass pressure reducing valve system.
