    1000 lb. 20 ft. Air Chain Hoist
    Picture of 1000 lb. 20 ft. Air Chain Hoist
    Picture of 1000 lb. 20 ft. Air Chain Hoist

    1000 lb. 20 ft. Air Chain Hoist

    5 out of 5 based on 5 reviews | Write a review
    $3,357.89
    Buy factory price 1000 lb. (0.5 ton) capacity air chain hoist online. This pneumatic hoist with 20 ft. lift, 0 to 45 fpm lift speed, is designed for heavy load lifting and spring-loaded canes for moving heavy load, which allows manual control.
    SKU: ATO-ACH-100020
    Free Shipping Worldwide

    1/2 ton cap. 20 ft. lift air operated chain hoist is used for lifting and moving heavy loads easily and safely in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

    Feature

    • Pendant throttle allows 1-handed control.
    • Aluminum frames and cover.
    • Top and bottom latch hooks swivel 360°.
    • Eight vanes air motor has tapped exhaust port.

    Specification

    Air Chain Hoist Model ATO-29HX86
    Capacity 1000 lb. (0.5 ton)
    Lift 20 ft.
    Lift Speed 0 to 45 fpm
    Min Between Hooks 15 1/4 in.
    Reeving 1
    Housing L 12 1/8 in.
    Housing W 10 3/16 in.
    Chain Length 11' - 5", 22' - 7"
    Air Pressure Recommended 90 psi
    Air Consumption 48 SCFM at 90 psi
    Suspension Hook
    Control Pendant Throttle
    Air Inlet Size 3/8 NPTF
    Air Supply Hose 1/2 I.D. min.
    Air Exhaust 1/2 NPTF
    Net Weight (Basic Hoist) 46 lbs (21 kg)
    Metal Chain Container Model ATO-29HX91
    Chain Lift Single 20 ft.
    Width 4.5 in.
    Height 12 in.

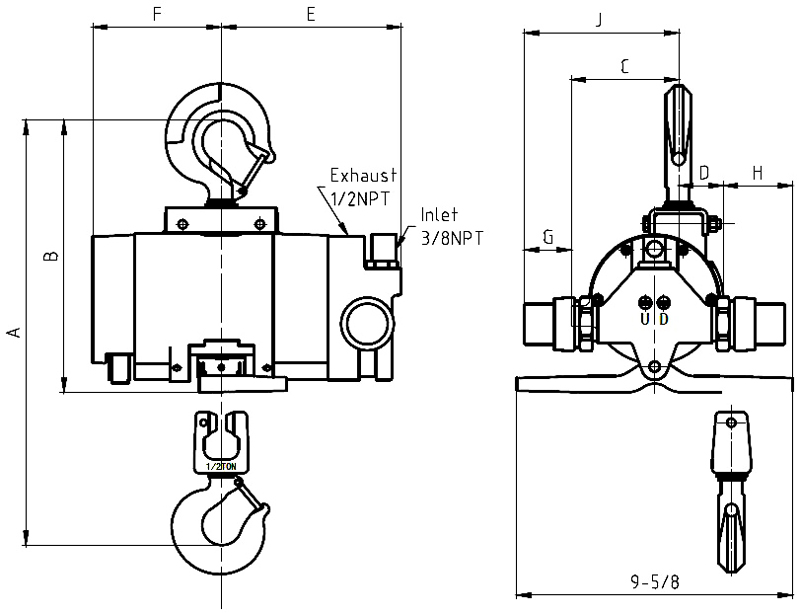

    Dimensions (Unit: mm)

    Dimension of 1000 lb air chain hoist

    Tips: Advantages of air chain hoist

    • Accurate positioning: Avoid the problem of inaccurate positioning of common lifting products, and can position the load to the "centimeter".
    • Adjustable speed: Stepless speed regulation when lifting or lowering; fast running speed, 3 times that of electric hoist; 5-10 times that of manual hoist.
    • Simple operation: The lever control operation is simple and easy to control, so that it can quickly respond to the action of the handle output when lifting or lowering.
    • Environmentally friendly, safe and reliable: Internal lubrication system eliminates air pollution. It is suitable for working in special or harsh environments such as moisture, humidity and high dust.
    • Effortless handling: In addition to paying attention to the beautiful appearance, the pneumatic hoist is smaller than the electric hoist, lighter in weight, easy to handle, and has a solid product structure design, making it reliable in operation and less maintenance.
    • Overload protection: ATO air chain hoist completely masters the most critical brake system and low-maintenance production technology in the process to avoid damage to the product caused by overloading.
    • Air cut-off protection: Avoid sudden interruption of air supply and sudden drop of the load. The product has a quality assurance, which eliminates the user's troubles caused by lifting or falling off.
    • Durable: ATO pneumatic chain hoist is durable, and its service life is significantly longer than that of other similar products.
