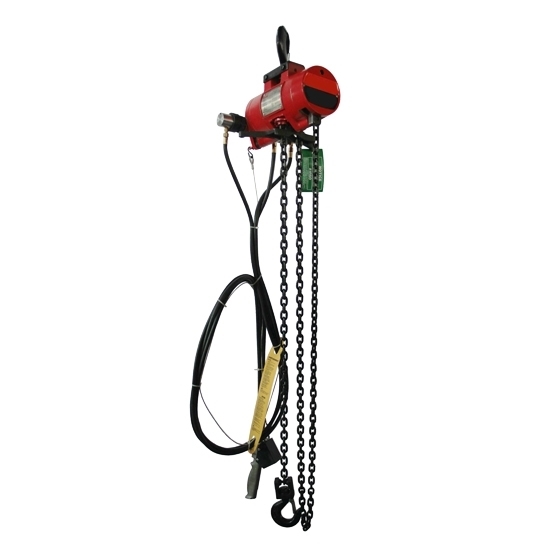

    300 lb. 10 ft. Air Chain Hoist

    5 out of 5 based on 1 reviews | Write a review
    $2,899.79
    Designed for heavy load lifting, 300 lb. cap. 10 ft. lift air chain hoist with spring-loaded vanes for ultimate load control. Air inlet 3/8 NPT, air exhaust 1/2 NPT, this pneumatic block chain hoist is used for lifting and moving heavy loads.
    SKU: ATO-ACH-30010
    Free Shipping Worldwide

    Compact 300 lb. cap. 10 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.

    Specification

    Air Chain Hoist Model ATO-29HX84
    Capacity 300 lb. (0.15 ton)
    Lift 10 ft.
    Lift Speed 0 to 84 fpm
    Min Between Hooks 15 1/4 in.
    Reeving 1
    Housing L 12 1/8 in.
    Housing W 10 3/16 in.
    Chain Length 11' - 5", 22' - 7"
    Air Pressure Recommended 90 psi
    Air Consumption 48 SCFM at 90 psi
    Suspension Hook
    Control Pendant Throttle
    Air Inlet Size 3/8 NPTF
    Air Supply Hose 1/2 I.D. min.
    Air Exhaust 1/2 NPTF
    Net Weight (Basic Hoist) 36 lbs (16.5 kg)
    Metal Chain Containers Model ATO-29HX91
    Chain Lift Single 20 ft.
    Weight 4.5 in.
    Hight 12 in.

    Dimensions (Unit: mm)

    Dimension of 300 lb air chain hoist

    Tips: Types of air chain hoist

    • Blade type air chain hoist
      Current commonly used air chain hoist with a load of 250kg-30 tons, is divided into fixed type and running type. It adopts durable drum brake to achieve safe braking. It is lightweight and easy to carry, and has low noise and vibration. Factories, textiles, warehousing and other occasions.
    • Gear type air chain hoist
      The load is from 3 tons to 100 tons. The disc brake is used, which is easy to maintain, automatically adjusts the braking gap, and has anti-corrosion performance. And the gear type pneumatic hoist is suitable for humid and dusty environments, and has strong durability.
    • Piston type air chain hoist
      The load is 5 tons to 20 tons, and it can reach 80 tons. It adopts high-torque piston motor, automatic, multi-disc, oil-bath motor brake, and can be used with large single-arm crane.
