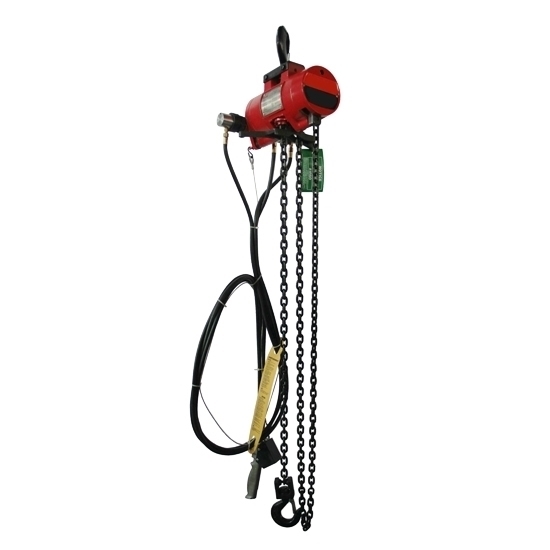

    500 lb. 20 ft. Air Chain Hoist

    5 out of 5 based on 3 reviews | Write a review
    Favorable price 500 lb. cap. 20 ft. lift air chain hoist with spring-loaded vanes for ultimate load control. Air inlet 3/8 NPT, air exhaust 1/2 NPT, 0 to 65 fpm lift speed, this pneumatic block chain hoist designed for heavy load lifting, can be used in dusty or dirty environments.
    SKU: ATO-ACH-50020
    30-day Returns
    Free Shipping

    Compact 1/4 ton. cap. 20 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.


    Air Chain Hoist Model ATO-29HX90
    Capacity 500 lb. (0.25 ton)
    Lift 20 ft.
    Lift Speed 0 to 65 fpm
    Min Between Hooks 15 1/4 in.
    Reeving 1
    Housing L 12 1/8 in.
    Housing W 10 3/16 in.
    Chain Length 11' - 5", 22' - 7"
    Air Pressure Recommended 90 psi
    Air Consumption 48 SCFM at 90 psi
    Suspension Hook
    Control Pendant Throttle
    Air Inlet Size 3/8 NPTF
    Air Supply Hose 1/2 I.D. min.
    Air Exhaust 1/2 NPTF
    Net Weight (Basic Hoist) 46 lbs (21 kg)
    Metal Chain Container Model ATO-29HX91
    Chain Lift Single 20 ft.
    Width 4.5 in.
    Height 12 in.

    Dimensions (Unit: mm)

    Dimension of 500 lb air chain hoist

    Tips: Why choose ATO air chain hoist?

    Air chain hoist is a kind of lifting equipment that uses compressed air as the working medium and converts the pressure energy of the compressed air into mechanical energy to lift the goods. It is mainly composed of five parts: the air motor part, the deceleration mechanism, the air circuit control, the braking mechanism and the lifting mechanism. Widely used in petroleum, chemical, coal mine, textile, warehousing, household appliance production line, automobile manufacturing production line and ship repair and other industries, it is an essential and important equipment for enterprises to produce safely, improve efficiency and reduce costs. Compared with electric chain hoists, pneumatic hoists have the following advantages:

    • There is no spark, which completely solves the explosion-proof problem of lifting equipment.
    • It can work in high a temperature, high dust and strong corrosive working environment.
    • Small size, light weight, easy to install and use.
    • Continuous high-frequency operation can be realized.
    • The lifting speed can realize stepless speed change.
    • Good self-locking performance, safe and reliable.

    Compressed air is easy to obtain, and the medium is clean, easy to maintain, and has self-protection properties. In military, textile, chemical and other special industries with flammable, explosive and corrosive media, pneumatic hoists have replaced electric hoists, and their application fields are still expanding. The development of foreign pneumatic hoists is very fast. The pneumatic hoist developed in the United States can lift as small as ton, as large as ton, and the lifting height can reach meters, and the lifting speed is about 100%. Foreign pneumatic hoists first used parallel shaft external gear transmission, and now most of them use planetary transmission.
