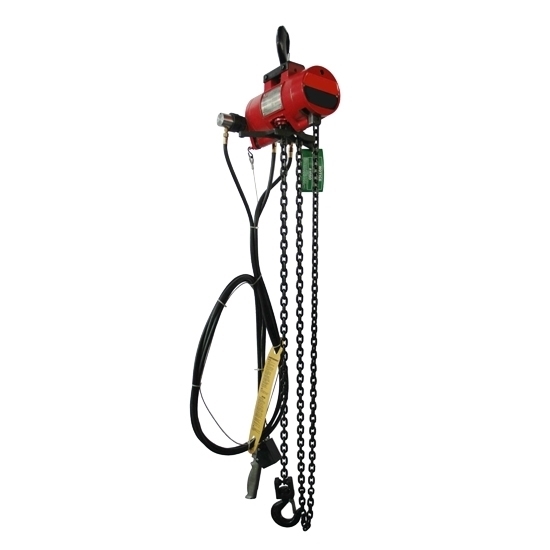

    500 lb. 10 ft. Air Chain Hoist

    5 out of 5 based on 2 reviews | Write a review
    500 lb. cap. 10 ft. lift air chain hoist with spring-loaded vanes for ultimate load control. Air inlet 3/8 NPT, air exhaust 1/2 NPT, 0 to 65 fpm lift speed, this pneumatic block chain hoist designed for heavy load lifting, can be used in dusty or dirty environments.
    SKU: ATO-ACH-50010
    30-day Returns
    Free Shipping

    Compact 500 lb. cap. 10 ft. lift air operated chain hoist is used for lifting and moving heavy loads in dusty or dirty environments. This pneumatic lever block chain hoist comes with heat-treated steel alloy load chain and spur gears.


    Air Chain Hoist Model ATO-29HX85
    Capacity 500 lb. (0.25 ton)
    Lift 10 ft.
    Lift Speed 0 to 65 fpm
    Min Between Hooks 15 1/4 in.
    Reeving 1
    Housing L 12 1/8 in.
    Housing W 10 3/16 in.
    Chain Length 11' - 5", 22' - 7"
    Air Pressure Recommended 90 psi
    Air Consumption 48 SCFM at 90 psi
    Suspension Hook
    Control Pendant Throttle
    Air Inlet Size 3/8 NPTF
    Air Supply Hose 1/2 I.D. min.
    Air Exhaust 1/2 NPTF
    Net Weight (Basic Hoist) 46 lbs (21 kg)
    Metal Chain Container Model ATO-29HX91
    Chain Lift Single 20 ft.
    Width 4.5 in.
    Height 12 in.

    Dimensions (Unit: mm)

    Dimension of 500 lb air chain hoist

    Tips: What is an air chain hoist?

    The air chain hoist is composed of five parts, including air motor, deceleration mechanism, air circuit control, braking mechanism and lifting mechanism. Pneumatic chain hoist is a relatively good safe lifting equipment in the industry now. It is powered by the use of compressed air to reduce the use of electricity. It has many advantages that other equipment can't match, because its performance advantages such as accurate positioning, simple operation, safety and reliability, and stepless speed regulation will be used more and more in future industrial production. Because the power source of the pneumatic chain hoist is air, the power is released by air compression. Some people may worry that if there is no air, will the load fall off? However, this is not the case, because the air hoist has an air-cut protection device, so it will not fall without air. In addition, it has an explosion-proof function.

    Existing reviews of 500 lb. 10 ft. Air Chain Hoist
    Perfectly happy with this purchase.
    This air chain hoist is well built, no excess oil as on cheaper makes. It can easily crate from a truck bed and set it down gently. Appears to constructed of quality materials. Perfectly happy with this purchase.
    From: Freddy | Date: 30/06/2022
    Was this review helpful? Yes No (0/0)
    Simple and safe air chain hoist
    This is my first time to buy a chain hoist. I found the hoist is easy to utilize. The hooks have spring loaded clips which helps ensure the hooks do not come undone. The manually controlled chain operates slowly, smoothly, and predictably.
    From: Joe | Date: 23/03/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
