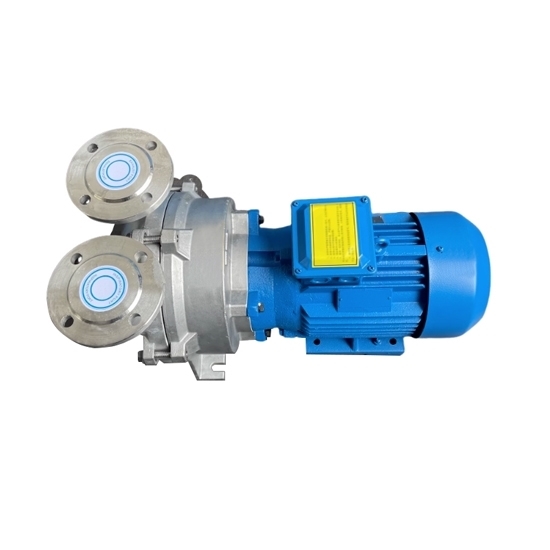

15 HP (11 kW) Water Ring Vacuum Pump

The mechanical seal of water ring vacuum pump adopts with high quality material. Water ring type vacuum pump is designed with coaxial direct connection, which saves space and is easy to install.

Features:

• Equipped with cavitation protection pipe interface.
• Flexible exhaust port design, no over compression.
• Designed with coaxial direct connection, which saves space and is easy to install.
• Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

• Model: 2BV5131
• Power: 15 hp (11 kW)
• Rated Voltage: 380V
• Phase: 3 phase
• Frequency: 50 Hz
• Max Gas Volume: 400 m³/h
• Extreme Pressure: 3300 Pa
• Rotating Speed: 1450 rpm
• Noise: 73 dB
• Material: stainless steel
• Motor Protection Class: IP54

Structure:

Dimension (Unit: mm)

Application:

Tips: How to Choose Water Ring Vacuum Pump?

• Determine the desired vacuum level. The vacuum level required for your application is a critical factor in selecting a water ring vacuum pump. Different pumps have different performance characteristics at different vacuum levels, so it's important to specify the desired vacuum level to ensure that the pump can meet your requirements.
• Identify the gas to be pumped. Consider the type of gas or vapor that you will be handling with the vacuum pump. Some water ring vacuum pumps are designed specifically for handling certain gases or vapors, while others are more general-purpose.
• Consider the capacity and flow rate. Determine the required capacity or flow rate of the pump based on your application's needs.
