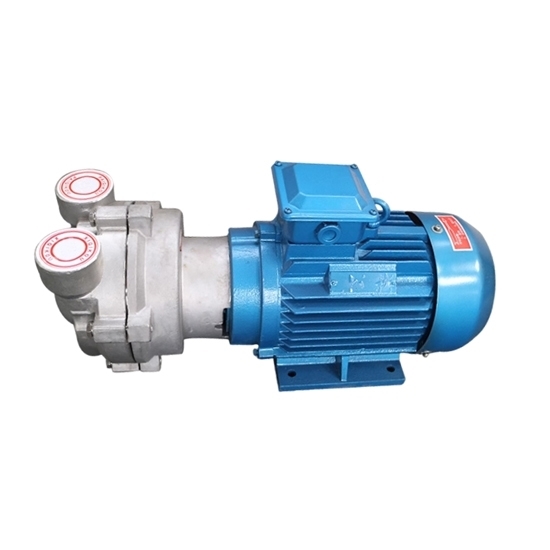

3 HP (2.35 kW) Water Ring Vacuum Pump

A 3 hp water ring vacuum pump is a type of industrial pump used to create vacuum by using water as the working fluid. The unique design of the discharge port can protect the vacuum pump from the over-pressure to ensure the best efficient performance in the working range of the pump.

Features:

• Equipped with cavitation protection pipe interface.
• Flexible exhaust port design, no over compression.
• Designed with coaxial direct connection, which saves space and is easy to install.
• Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

• Model: ATO-2BV2070
• Power: 3 hp (2.35 kW)
• Rated Voltage: 380V
• Phase: 3 phase
• Frequency: 50 Hz
• Max Gas Volume: 80 m³/h
• Extreme Pressure: 3300 Pa
• Noise: 66 dB
• Material: stainless steel
• Net Weight: 50kg

Dimension (Unit: mm)

Details

Application:

Tips: How to Use Water Ring Vacuum Pump?

• Set up the pump. Place the water ring vacuum pump in a suitable location that is well-ventilated and has enough space for the pump to operate safely. Ensure that the pump is properly connected to a power source and that the water supply is connected and flowing to the pump.
• Fill the pump with water. The water ring vacuum pump requires water to create the vacuum, so it needs to be filled with water before operation. Fill the pump with clean water up to the specified level indicated on the pump's sight glass or level indicator.
• Start the pump. Turn on the power supply to the pump and switch on the motor. The pump should start operating, and the water inside the pump will begin to circulate, creating the water ring necessary for the vacuum generation.
• Adjust the vacuum level. Most water ring vacuum pumps have controls or valves that allow you to adjust the vacuum level.
