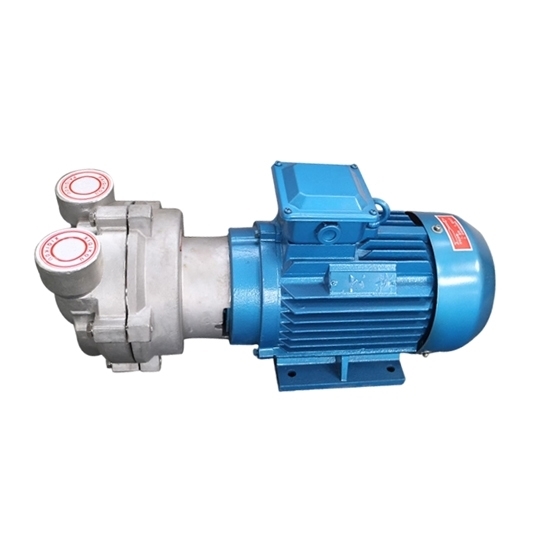

1 HP (0.81 kW) Water Ring Vacuum Pump

A water ring vacuum pump is a type of vacuum pump that uses water as the working fluid to create a vacuum. It is also known as a liquid ring vacuum pump or a water ring pump. As the impeller rotates, 1 hp water ring vacuum pump creates centrifugal force, which compresses and moves air or gases towards the discharge port, effectively creating a vacuum.

Features:

• Equipped with cavitation protection pipe interface.
• Flexible exhaust port design, no over compression.
• Designed with coaxial direct connection, which saves space and is easy to install.
• Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

• Model: ATO-2BV2060
• Power: 1 hp (0.81 kW)
• Rated Voltage: 380V
• Phase: 3 phase
• Frequency: 50 Hz
• Max Gas Volume: 27 m³/h
• Extreme Pressure: 3300 Pa
• Noise: 62 dB
• Material: stainless steel
• Net Weight: 32kg

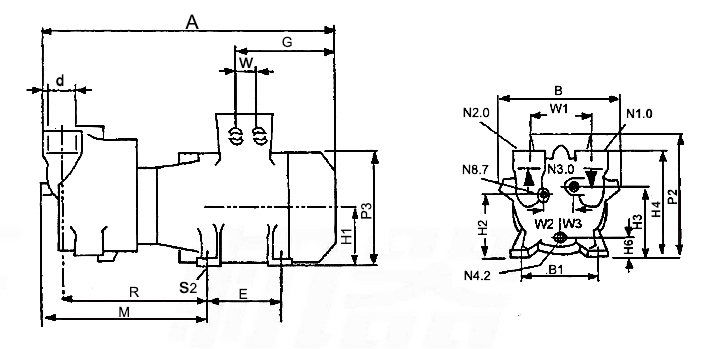

Dimension (Unit: mm)

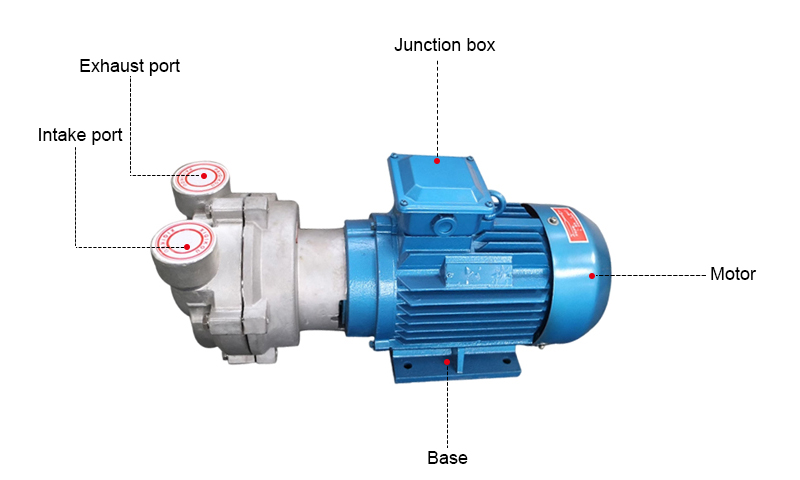

Details

Application:

Tips: What is Water Ring Vacuum Pump?

A water ring vacuum pump, also known as a liquid ring vacuum pump, is a type of vacuum pump that uses water or another liquid as its operating medium to create vacuum pressure. It is a positive displacement pump that works by creating a rotating liquid ring inside the pump casing. The liquid ring serves as a seal and also acts as the working medium to compress the gas being pumped.
