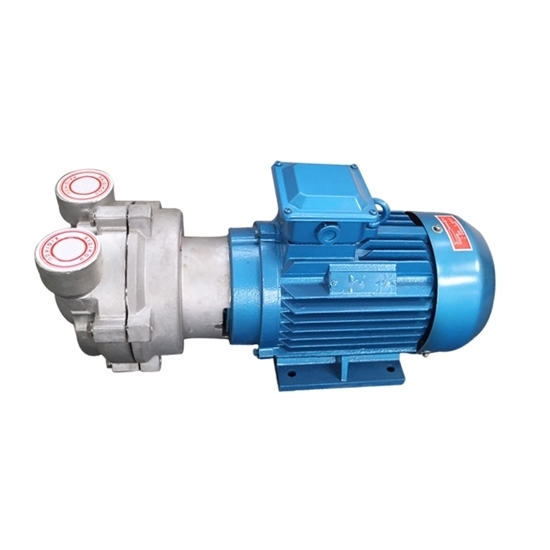

    5 HP (3.85 kW) Water Ring Vacuum Pump

    Single stage water ring vacuum pump with 5 hp power and 2880 rpm rotating speed. The close coupled design of water vacuum pump is convenient to install and can save space. The unique design of the discharge port can protect the vacuum pump from the over-pressure.
    SKU: ATO-WRVP-05
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Water ring vacuum pump adopts high quality mechanical seal as standard configuration. The motor of this type vacuum pump with protection grade of IP54.


    • Equipped with cavitation protection pipe interface.
    • Flexible exhaust port design, no over compression.
    • Designed with coaxial direct connection, which saves space and is easy to install.
    • Vacuum pump adopts high quality mechanical seal as standard configuration.


    • Model: 2BV2071
    • Power: 5 hp (3.85 kW)
    • Rated Voltage: 380V
    • Phase: 3 phase
    • Frequency: 50 Hz
    • Max Gas Volume: 110 m3/h
    • Extreme Pressure: 3300 Pa
    • Rotating Speed: 2880 rpm
    • Noise: 72 dB
    • Material: stainless steel
    • Motor Protection Class: IP54

    Dimension (Unit: mm)

    Water ring vacuum pump dimension 2bv2

    2BV2-071 A B B1 E H1 H2 H3
    590 223 190 140 112 140 234
    H4 H6 M P2 P3 R S2
    222 45 344 300 240 290 φ12
    W1 W2 W3 d N3.0 N4.2 N8.7
    110 33 27 G1/2" G3/8" G1/4" G3/8"


    Water ring vacuum pump application

    Tips: Water Ring Vacuum Pump Troubleshooting

    • Poor vacuum performance. Ensure that there is a sufficient and continuous supply of clean water to the pump. Insufficient water supply can result in reduced pump performance. Verify that the seal water is properly flowing and at the correct pressure. Inadequate seal water can affect the formation of the water ring inside the pump and reduce its performance.
    • Cavitation. Cavitation occurs when air or gas bubbles form in the water ring, leading to pump performance issues. Inspect impeller and casing.Cavitation can cause damage to the impeller and casing. Inspect them for any signs of wear or damage and replace if necessary.
    • Leakage. Checking seals and gaskets, inspect the seals and gaskets for any signs of wear, damage, or misalignment.Replace them if needed.
