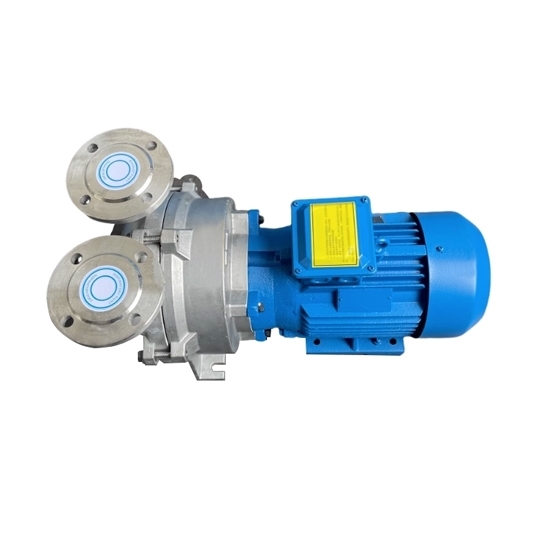

    5.5 HP (4 kW) Water Ring Vacuum Pump

    $2,217.95
    Water ring type vacuum pump with 5.5 hp power and stainless steel material in affordable price for sale. Rated voltage of 5.5 hp water ring pump is 380V. The protection class is IP54 and the insulation grade is F. And the unique design of the discharge port ensure the best efficient performance in the working range of the 5.5 hp vacuum pump.
    SKU: ATO-WRVP-055
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Aluminum bronze impeller is of high intensity and wearing well. The erosive-proof capacity of the vacuum pump can be improved by using it. 5.5 hp water ring pump is favored in industries requiring continuous or heavy-duty vacuum operations, such as food processing, pharmaceuticals, plastics manufacturing, and more.

    Features:

    • Equipped with cavitation protection pipe interface.
    • Flexible exhaust port design, no over compression.
    • Designed with coaxial direct connection, which saves space and is easy to install.
    • Vacuum pump adopts high quality mechanical seal as standard configuration.

    Specification:

    • Model: 2BV5110
    • Power: 5.5 hp (4 kW)
    • Rated Voltage: 380V
    • Phase: 3 phase
    • Frequency: 50 Hz
    • Max Gas Volume: 165 m3/h
    • Extreme Pressure: 3300 Pa
    • Rotating Speed: 1450 rpm
    • Noise: 63 dB
    • Material: stainless steel
    • Motor Protection Class: IP54

    Structure:

    Water ring vacuum pump structure 2bv5

    Dimension (Unit: mm)

    Water ring vacuum pump 2bv5 dimension

    2BV5-110 A B B1 B2 C1 C2 H1
    637 325 255 190 41 26 140
    H2 H3 H4 H5 H6 H7 K
    153 195 358 328 37 55 335
    L F N S1 S2 T d1
    130 464 92 φ12×23 φ12 340 19
    d2 d3 d4 d5 W1 W2 W3
    160 123 97 52 180 52 27
    N3.0 N4.2 N8.7 / / / /
    G3/4" G3/8" G3/8" / / / /


    Application:

    Water ring vacuum pump application

    Tips: How Does Water Ring Vacuum Pump Work?

    A water ring vacuum pump is a type of positive displacement pump that is used to create a vacuum in various industrial applications. It operates based on the principle of creating a rotating liquid ring to compress and evacuate gases from a closed system. This cyclic process of creating a rotating liquid ring, trapping and compressing gases, and discharging them is repeated continuously to maintain the desired level of vacuum in the system.
