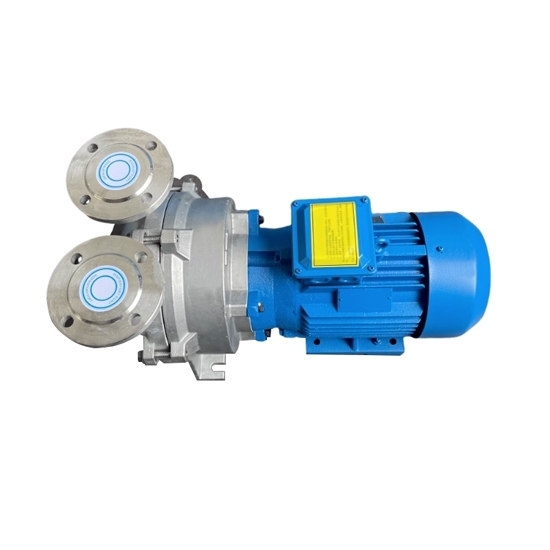

    20 HP (15 kW) Water Ring Vacuum Pump

    $5,931.82
    Single stage 20 hp water ring vacuum pump adopts with stainless steel material. The close-coupled design of liquid ring vacuum pump is convenient to install and can save space. Frequency of liquid ring vacuum pump is 50 Hz. The unique design of the discharge port ensures the best efficient performance in the working range of the vacuum pump.
    SKU: ATO-WRVP-20
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    A 20 hp water ring vacuum pump is a type of industrial pump used for creating vacuum conditions in various applications. Aluminum bronze impeller is of high intensity and wearing well. The erosive-proof capacity of the water ring type vacuum pump can be improved by using it. Liquid ring vacuum pump is also valued for its ability to handle liquids and particulate-laden gases without clogging or damage, making them versatile and widely used in industries requiring vacuum or compression capabilities.

    Features:

    • Equipped with cavitation protection pipe interface.
    • Flexible exhaust port design, no over compression.
    • Designed with coaxial direct connection, which saves space and is easy to install.
    • Vacuum pump adopts high quality mechanical seal as standard configuration.

    Specification:

    • Model: 2BV5161
    • Power: 20 hp (15 kW)
    • Rated Voltage: 380V
    • Phase: 3 phase
    • Frequency: 50 Hz
    • Max Gas Volume: 500 m3/h
    • Extreme Pressure: 3300 Pa
    • Rotating Speed: 970 rpm
    • Noise: 74 dB
    • Material: stainless steel
    • Motor Protection Class: IP54

    Structure:

    Water ring vacuum pump structure 2bv5

    Dimension (Unit: mm)

    Water ring vacuum pump 2bv5 dimension

    2BV5-161 A B B1 B2 C1 C2 H1
    1044 479 370 389 52 30 210
    H2 H3 H4 H5 H6 H7 K
    222 300 521 485 50 77 565
    L F N S1 S2 T d1
    201 808 138 φ15×27 φ14 450 22
    d2 d3 d4 d5 W1 W2 W3
    200 156 130 80 250 81 41
    N3.0 N4.2 N8.7 / / / /
    G3/4" G3/8" G3/8" / / / /


    Application:

    Water ring vacuum pump application

    Tips: What is Extreme Pressure of Water Ring Vacuum Pump?

    The extreme pressure of a water ring vacuum pump typically refers to the highest pressure that the pump can achieve while still maintaining its proper functioning.  This pressure is often limited by the strength and integrity of the pump’s components, such as the impeller, casing, and seals. The extreme pressure rating of a water ring vacuum pump is usually specified by the manufacturer and can vary widely depending on the pump's size, design, and materials of construction.
