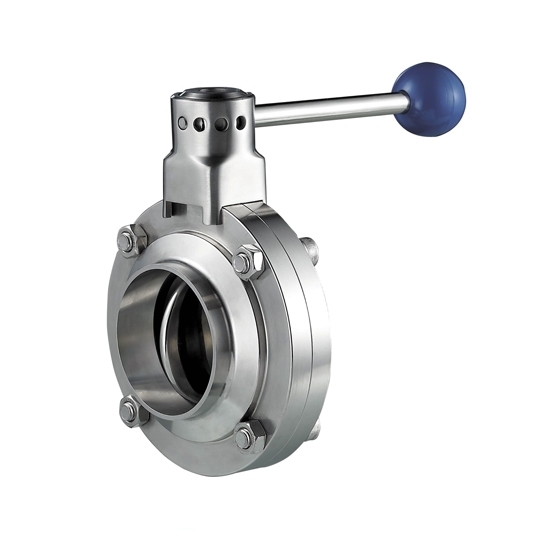

    2.5 inch Stainless Steel Sanitary Butterfly Valve

    5 out of 5 based on 1 reviews | Write a review
    Economical price manual sanitary butterfly valve with welded end or tri clamp end for flow control, throttling and steam service in food- processing, pharmacy and chemical industries. 2.5 inch size, EPDM seat, 304 stainless steel body material, manually operated with a SS handle.
    SKU: ATO-BV-25I
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hand operated SS sanitary butterfly valve is a hygienic valve with purity requirements for food and chemical industries. This 2.5 inch manual BF valve is made from 304 stainless steel and comes with welded end or tri clamp end, which is simple structure and high performance for flow control, throttling and steam service.


    Model ATO-BV-25I
    Type SS Sanitary Butterfly Valve
    Size 2.5 inch
    Connection Method (Optional) Welded End/ Tri Clamp End
    Drive Method Manual
    Body Material 304 Stainless steel (Default) / 316 stainless steel
    Washer and Gasket EPDM comforms to PFA 177.2600
    Handle AISI 304/ PP
    Surface Finishing Ra≤0.8
    Operating Torque 3Nm
    Operating Temperature -10℃~+120℃
    Max. Pressure 1MPa
    Min. Pressure 0.02MPa p.abs
    Weight 2.5 kg
    Certificate PED97-23EC, FDA.177.2600

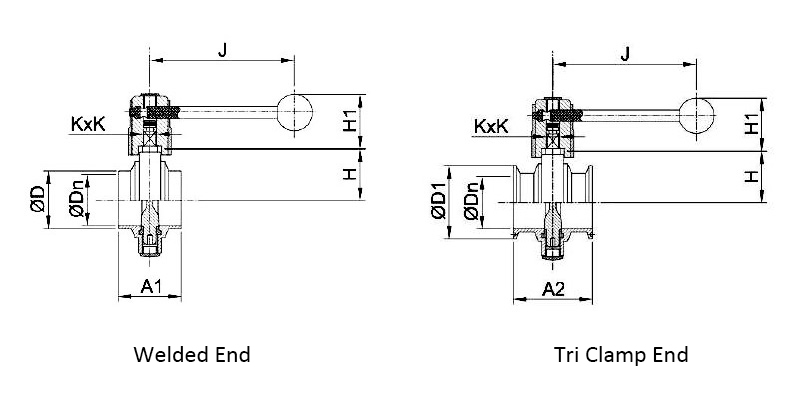

    Dimensions (Unit: mm)

    Dimensions of Welded End and Tri Clamp End Stainless Steel Sanitary Butterfly Valve

    Size Dn D D1 J H H1 A1 A2
    2.5 inch 59.5 63.5 77.5 144 59 47.5 56 80

    Tips: Under what circumstances are sanitary butterfly valves easy to be corroded?

    Sanitary butterfly valves are mostly made of stainless steel, which has the ability to resist atmospheric oxidation, and also has the ability to resist corrosion in media containing acids, alkalis and salts. The corrosion resistance of stainless steel butterfly valves varies with the chemical composition of the stainless steel material, the use conditions and the type of environmental media. Such as the 304 stainless steel butterfly valve, in a dry and clean atmosphere, it has absolutely excellent rust and corrosion resistance. But when used in coastal areas, it will quickly rust in sea fog containing a lot of salt.

    The sanitary butterfly valve relies on a very thin, strong, dense and stable chromium-rich oxide film formed on the surface of the stainless steel material to prevent oxygen atoms from continuing to penetrate and continue to oxidize, thereby obtaining the ability to resist rust. Once the film is continuously destroyed for some reason, the oxygen atoms in the air or liquid will continue to infiltrate or the iron atoms in the metal will continue to separate out, forming loose iron oxide, and the sanitary butterfly valve will continue to be rusted.

    The chromium content of general stainless steel is generally not less than 12%, and even as high as 18%. After adding chromium and other elements to the stainless steel, the fluorine-lined butterfly valve can change the performance of the steel, and it is easier to form a dense oxide protective film on the surface of the steel, thereby greatly improving the corrosion resistance of the stainless steel butterfly valve.

    Existing reviews of 2.5 inch Stainless Steel Sanitary Butterfly Valve
    This stainless steel butterfly valve looks great.
    This is a good sanitary butterfly valve with reasonable price. It functions as required. It is a high quality control valve and doing great for beer brewing. I would definitely look to this supplier in the future.
    From: Shelby | Date: 28/04/2022
