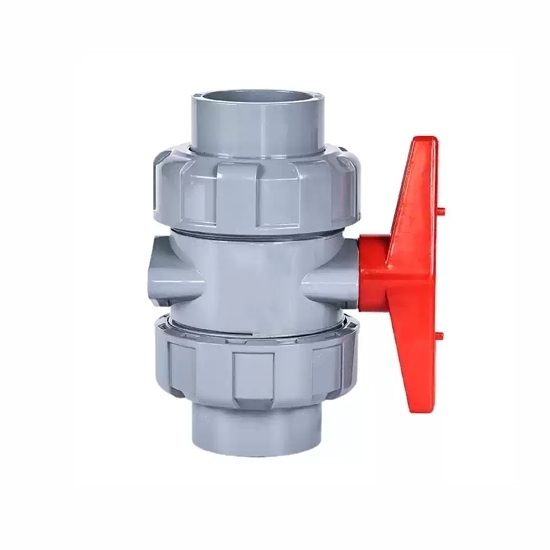

    2" PVC True Union Ball Valve

    The 2" PVC true union ball valve features a compact and lightweight design that offers superior performance, durability and ease of use. PVC flapper ball valves are a reliable and cost-effective solution for fluid control in a variety of industrial and commercial applications.
    SKU: ATO-FC-PBV-02
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy low price PVC true union ball valves online with DN50 bore size and 60mm outer diameter. The double union ball valve is the perfect choice for customers who require a reliable, easy to maintain valve that can withstand harsh operating conditions.


    • Model: ATO-PBV-DN50
    • Material: PVC
    • Inner Diameter: 2 inch (DN50)
    • Outer Diameter: 60mm
    • Direction of Flow: bi-directional
    • Type (Channel Position): Two-way
    • Pressure Environment: High pressure
    • Operating Temperature: -10-60°C


    • 2 inch PVC true union ball valves are highly resistant to corrosion from chemicals, making them ideal for use in corrosive environments.
    • These true union PVC ball valves are designed for easy installation and maintenance, which helps reduce downtime and maintenance costs.
    • The full bore design of the PVC ball valve allows for high flow rates and minimal pressure drop, which ensures efficient operation of the system.
    • The true union design of the valve ensures that it is completely leak-proof, even under high pressure.
    • The ball valve design allows for easy and precise control of the flow of fluid in the system.
    • PVC double union ball valves can be used in a wide range of applications, including chemical processing, water treatment, and irrigation systems.
    • 60mm PVC true union ball valves are made from high-quality materials that are resistant to wear and tear, ensuring a long service life.

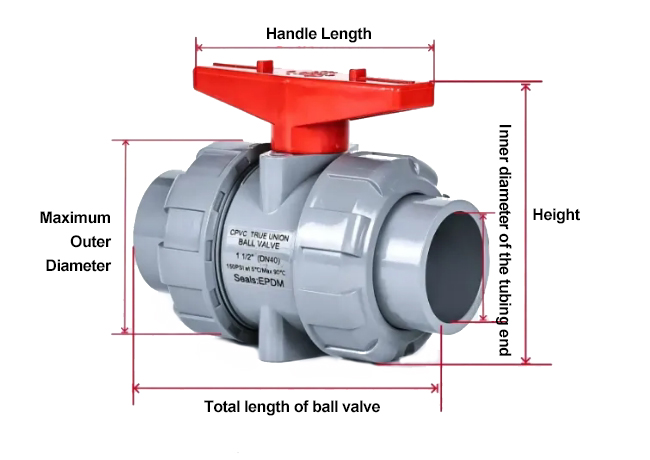

    Dimension (Unit mm)

    PVC ball valve dimension

    Size D1 D2 D P H L
    2 inch 60 75 50 38 103 218


    PVC ball valves are commonly used in a variety of industries, including water treatment, irrigation, chemical processing, and HVAC systems. They are particularly useful for controlling the flow of fluids or gases in pipelines and can be found in both commercial and residential applications. PVC ball valves are also often used in aquariums and other aquatic environments to regulate water flow and prevent backflow.

    PVC ball valve applications

    Tips: How to install a PVC ball valve?

    Installing a PVC ball valve is a relatively simple process that can be done with a few basic tools. Here are the steps to install a PVC ball valve:

    1. Turn off the water supply to the area where you will be installing the ball valve.
    2. Cut the PVC pipe at the point where you want to install the valve. Use a PVC cutter or hacksaw to make a clean, straight cut.
    3. Use sandpaper to smooth the edges of the cut pipe. This will ensure a tight, leak-free seal.
    4. Take the PVC ball valve and remove any protective caps or covers from the ends.
    5. Apply PVC primer to the outside of the pipe and the inside of the valve sockets. Allow the primer to dry for a few seconds.
    6. Apply PVC cement to the primed areas. Make sure to apply enough cement to create a good seal.
    7. Push the valve onto the pipe and hold it in place for a few seconds to allow the cement to dry.
    8. Repeat steps 5-7 for the other end of the valve.
    9. Turn the water supply back on and check for leaks.
    10. If there are no leaks, you have successfully installed the PVC ball valve.

    Note: Always follow the manufacturer's instructions when installing PVC ball valves, and wear appropriate safety gear, such as gloves and eye protection, during the installation process.
