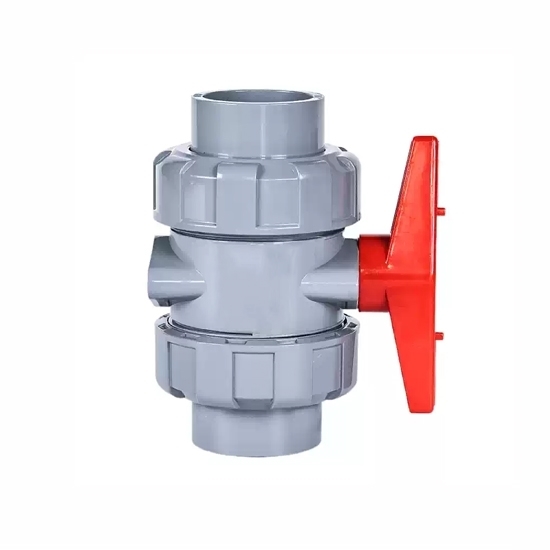

1" CPVC True Union Ball Valve

Note: This ball valve cannot be used for drinking water.

The 1" true union ball valve is made of high quality CPVC material to ensure durability and long lasting performance. This 32mm CPVC union ball valve has a unique design that is easy to install and maintain, making it a popular choice for many customers.

Specification

• Model: ATO-PBV-DN25
• Material: CPVC
• Inner Diameter: 1 inch (DN25)
• Outer Diameter: 32mm
• Direction of Flow: bi-directional
• Type (Channel Position): Two-way
• Pressure Environment: High pressure
• Operating Temperature: -10-60°C

Features

• 1 inch CPVC true union ball valves are highly resistant to corrosion from chemicals, making them ideal for use in corrosive environments.
• These true union CPVC ball valves are designed for easy installation and maintenance, which helps reduce downtime and maintenance costs.
• The full bore design of the CPVC ball valve allows for high flow rates and minimal pressure drop, which ensures efficient operation of the system.
• The true union design of the valve ensures that it is completely leak-proof, even under high pressure.
• The ball valve design allows for easy and precise control of the flow of fluid in the system.
• CPVC double union ball valves can be used in a wide range of applications, including chemical processing, water treatment, and irrigation systems.
• 32mm CPVC true union ball valves are made from high-quality materials that are resistant to wear and tear, ensuring a long service life.

Dimension (Unit mm)

Applications

CPVC ball valves are commonly used in a variety of industries, including water treatment, irrigation, chemical processing, and HVAC systems. They are particularly useful for controlling the flow of fluids or gases in pipelines and can be found in both commercial and residential applications. CPVC ball valves are also often used in aquariums and other aquatic environments to regulate water flow and prevent backflow.

Tips: What are the different types of CPVC ball valves?

CPVC ball valves are commonly used in a variety of applications due to their durability, affordability, and resistance to corrosion and chemicals. Here are some of the different types of CPVC ball valves:

• One-piece CPVC ball valve: This type of ball valve is made from a single piece of CPVC material, and it is compact and easy to install. It is commonly used in low-pressure applications such as irrigation and pool systems.
• Two-piece CPVC ball valve: This type of ball valve is made up of two separate pieces, which makes it easier to replace the valve without having to cut the pipe. It is commonly used in applications where the valve needs to be regularly serviced or replaced.
• Three-piece CPVC ball valve: This type of ball valve is made up of three separate pieces, which makes it even easier to disassemble and service. It is commonly used in high-pressure applications such as industrial and chemical processing.
• True union CPVC ball valve: This type of ball valve has a unique design that allows for easy installation and removal without having to cut the pipe. It is commonly used in applications where the valve needs to be regularly serviced or replaced.
• Multi-port CPVC ball valve: This type of ball valve has more than two ports, which allows for greater control over the flow of fluids or gases. It is commonly used in complex plumbing and piping systems.
