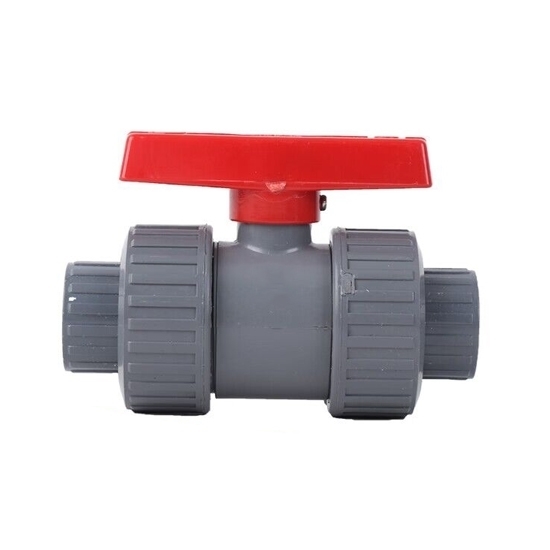

3/4" PVC True Union Ball Valve

The double union PVC ball valve is available at a low price, it has an inner diameter size of DN20 and an outer diameter size 25mm. The compact 3/4 inch true union ball valve has a fully ported design for long lasting, superior performance in the field.

Specification

• Model: ATO-PBV-DN20
• Material: PVC
• Inner Diameter: 3/4 inch (DN20)
• Outer Diameter: 25mm
• Direction of Flow: bi-directional
• Type (Channel Position): Two-way
• Pressure Environment: High pressure
• Operating Temperature: -10-60°C

Features

• 3/4 inch PVC true union ball valves are highly resistant to corrosion from chemicals, making them ideal for use in corrosive environments.
• These true union PVC ball valves are designed for easy installation and maintenance, which helps reduce downtime and maintenance costs.
• The full bore design of the PVC ball valve allows for high flow rates and minimal pressure drop, which ensures efficient operation of the system.
• The true union design of the valve ensures that it is completely leak-proof, even under high pressure.
• The ball valve design allows for easy and precise control of the flow of fluid in the system.
• PVC double union ball valves can be used in a wide range of applications, including chemical processing, water treatment, and irrigation systems.
• 25mm PVC true union ball valves are made from high-quality materials that are resistant to wear and tear, ensuring a long service life.

Dimension (Unit mm)

Applications

PVC ball valves are commonly used in a variety of industries, including water treatment, irrigation, chemical processing, and HVAC systems. They are particularly useful for controlling the flow of fluids or gases in pipelines and can be found in both commercial and residential applications. PVC ball valves are also often used in aquariums and other aquatic environments to regulate water flow and prevent backflow.

Tips: How does a true union ball valve work?

A true union ball valve is a type of valve that uses a ball with a hole in the middle to control the flow of fluid through a pipe. The ball is usually made of brass or stainless steel, and is seated in a housing made of plastic or other material.

The valve works by turning the handle attached to the ball. When the handle is turned, the ball rotates, either allowing or blocking the flow of fluid through the valve. When the ball is in the closed position, the hole in the ball is perpendicular to the flow of fluid, preventing it from passing through the valve. When the ball is in the open position, the hole in the ball is aligned with the flow of fluid, allowing it to pass through the valve.

The true union aspect of the valve refers to its design, which allows for easy removal and replacement of the valve without having to cut the pipe. The valve is made up of three main components: the housing, the ball, and two end connectors. The end connectors are designed to be easily removed from the housing, allowing the valve to be taken apart for maintenance or replacement.

Overall, a true union ball valve is a reliable and versatile valve that is commonly used in industrial and residential applications to control the flow of water, chemicals, and other fluids.
