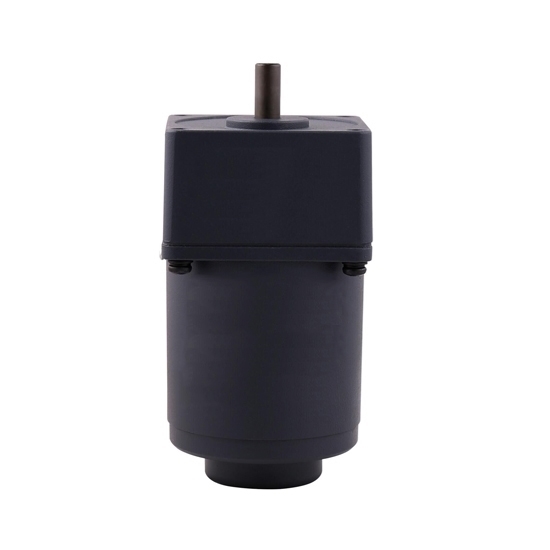

    20 W AC Gear Motor, Torque Motor with Gearbox, single phase

    $203.69
    Lower cost AC gear motor & torque motor with gearbox, 3, 5, 6...200 21 different kinds of gear ratio for you to choose. It has 20 W power and 1350 rpm rated speed, works at 110V/ 220V AC single phase voltage. The torque and speed can be adjusted by changing the voltage of the motor because of the large starting torque.
    SKU: ATO-5TK20GN
    *
    *
    Delivery date: 6-12 days

    20W AC torque motor with high torque and low speed, will operate satisfactorily on 50 or 60 Hz. Our torque motor has high starting torque and sloping characteristics, allowing speed control simply by changing the voltage of the power supply. Special rotor provides excellent performance for holding, winding, and tensioning applications.

    Specifications

    Model 5TK20GN-A 5TK20GN-C
    Shaft Type Pinion Shaft
    Power 20 W
    Frequency 50 Hz 60 Hz 50 Hz 60 Hz
    Rating at Locked rotor 5 Min Continuous 5 Min Continuous 5 Min Continuous 5 Min Continuous
    Voltage 110V 60V 110V 60V 220V 140V 220V 140V
    Starting Torque 363 N.m 137 N.m 294 N.m 108 N.m 363 N.m 137 N.m 294 N.m 108 N.m
    Max. Output Power 20 W 6 W 20 W 6 W 20 W 6 W 20 W 6 W
    Torque at Max. Output Power 224 N.m 76 N.m 216 N.m 64 N.m 224 N.m 76 N.m 216 N.m 64 N.m
    Speed at Max. Output Power 750 r/min 900 r/min 750 r/min 900 r/min
    Capacitor 15.0/250 12.0/250 3.5/450 3/450
    Weight Motor: 2.4 Kg; Gear head: 1.35 Kg
    Gearbox Model 5GN[]K
    Gear Ratio 3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200
    Enter the gear ratio into the box ([]) within the model name

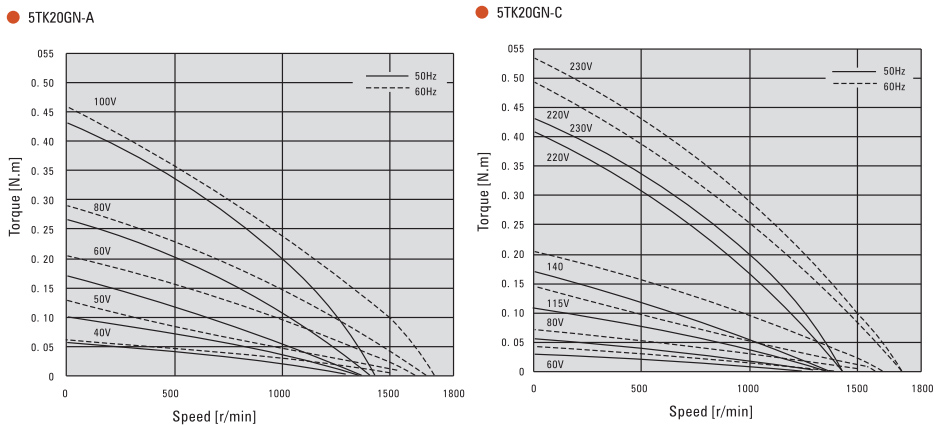

    Speed - Torque Characteristics (Reference Values)

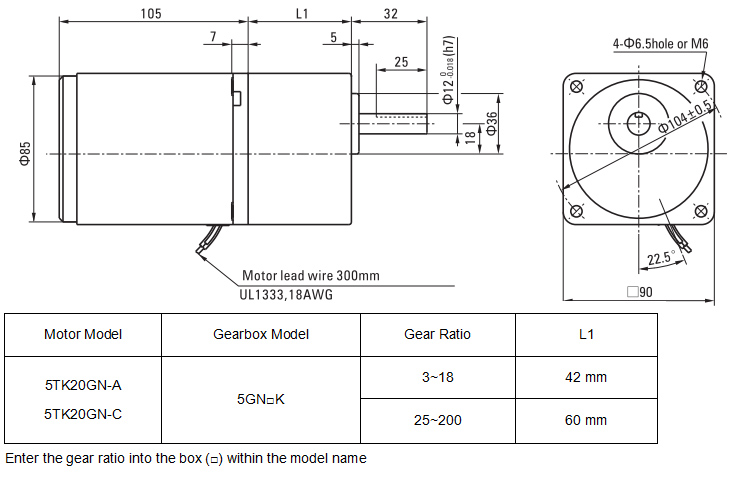

    20 w torque motor speed torque characteristicsDimensions
    20 w torque motor dimensionWiring Diagram
    torque motor wiring diagramTips: What is the starting torque, rated torque, maximum torque and overload capacity of a motor?

    1. Starting torque. When the motor is started immediately after the power is turned on, the torque when the speed n = 0 and the slip s = 1 is called the starting torque of the motor.
    2. Rated torque. The motor can work for a long time under the rated voltage and rated frequency. The maximum allowable torque output on the shaft is called the rated torque.
    3. Maximum torque. The maximum torque produced by an electric motor is called the maximum torque of the motor. If the load torque is greater than the maximum torque of the motor, the motor can not start.
    4. Overload capacity. The ratio of the maximum torque to the rated torque is called the overload capacity of the motor, which is an important data to measure the short time overload and operation stability of the motor. The motor's overload capacity is usually between 1.8 and 2.5 times.
