    200 W DC Gear Motor, 3000 rpm, 12V/24V/48V

    $232.48
    The DC gear motor with compact size, designed for 12V, 24V or 48V voltage, power up to 200 watt. 3000 rpm rated speed and 0.64 Nm rated torque providing higher performance and more reliable, widely used in various industrial applications.
    SKU: ATOD5BLD200
    *
    *
    Free shipping
    Delivery date: 6-12 days

    The rated speed of this 200W DC gear motor is 3000 rpm, and the peak torque up to 1.91 Nm, gear ratio ranging from 3:1 to 200:1, available in 12V, 24V, 48V, is a perfect solution for motion control applications where high accuracy, maximum efficiency and a small package are required.

    200W DC gear motor Specifications

    Model ATOD5BLD200-12 ATOD5BLD200-24 ATOD5BLD200-48
    Power 200W 200W 200W
    Voltage 12V 24V 48V
    Rated Speed 3000 rpm 3000 rpm 3000 rpm
    No-load Speed 3300 rpm 3300 rpm 3300 rpm
    Rated Current 20.83A 10.42A 5.21A
    Rated Torque 0.64 N.m 0.64 N.m 0.64 N.m
    Peak Torque 1.91 N.m 1.91 N.m 1.91 N.m
    No-load Current < 6.2A < 4.13A < 1.61A
    Compatible Driver Model BLD-750 BLD-750 BLD-300B
    Weight 3 Kg
    Gear Head Motor 2GN□K Enter the gear ratio into the box (□) within the model name
    Gear Ratio 3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

    Note:
    *Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

    The allowable torque with a gear head
    Allowance Torque Unit: Upside (N.m)/Belowside (kgf.cm)

    Type Gear Ratio 3 5 7.5 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
    ATOD5BLD150 Speed (r/min) 1000 600 400 300 240 200 167 150 120 100 83.33 75 60 50 40 33 30 25 20 17 15
    2GN□K 1.55 2.58 3.87 5.16 5.81 6.97 8.37 8.40 10.51 12.61 15.13 16.81 20 20 20 20 20 20 20 20 20
    15.47 25.79 38.68 51.57 58.1 69.72 83.66 84.04 105.1 126.1 151.3 168.1 200 200 200 200 200 200 200 200 200

    Note:
    *The values colored "Red" indicate that the gear head and the DC motor are running in the same direction, and the other values are in the opposite direction.
    *When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gear head.

    Dimension

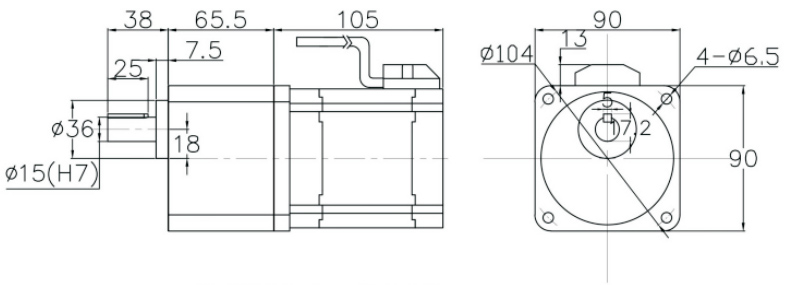

    200 w gear motor dimension
    *Mounting screws are included with gearbox

    Tips: What are the inspection contents for gear motor before use?
    The gear motor shall be inspected before it works, we can check whether there's hidden danger or it's properly installed. Then what are the inspection contents for gear motor before use?

    1. Please confirm the appearance of gear motor before use, check if there’s oil leakage.
    2. Please confirm in advance whether the specifications of the gear motor are in accordance with the design specifications.
    3. Please confirm the service voltage of the gear motor, a voltage regulator can be added if the voltage is unstable.
    4. Please confirm the seat is fixed, in case of loosening when running and transmission.

    1000W brushless DC motor speed - torque diagram
    1kw BLDC motor torque speed diagram

    • Instantaneous maximum torque line
      The maximum torque momentarily impacts the load when the motor is started.
      Beyond this torque, the over-current protection of the driver will cause the motor to stop.
    • Short time operation area
      The motor can run at a short time within this torque range at different speeds.
      If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
    • Rated operating torque line
      The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
    • Continuous operating area
      When the motor rotates at different speeds, it runs continuously in this corresponding zone.
