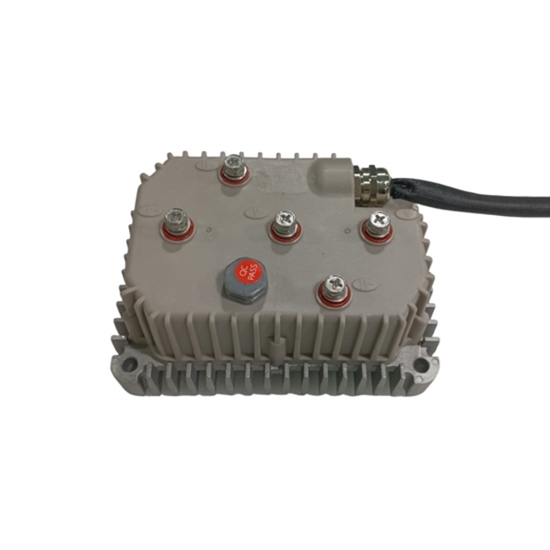

9V-32V Brushless DC Motor Controller for 12V/24V BLDC Motor

Factory price brushless DC motor controller works at 9V to 32V operating voltage range to control speed for 12V/24V BLDC motor. High performance brushless DC motor driver, synchronous rectification, ultra-low drop, and fast PWM to achieve high efficiency.

Specifications

• Model: ATO-KVD2412N
• Nominal Voltage: 12-24V
• Max Operating Voltage: 9-32V
• Peak Current**1 Minute: 140A
• Continuous Current: 60A-100A
• Frequency of Operation: 16.6KHz
• Standby Battery Current: <0.5mA
• 5V or 12V Sensor Supply Current: 40mA
• Supply Current: PWR, 30mA Typical
• Configurable Battery Voltage Range: B+
• Standard Throttle Input: 0-5 Volts (3-wire Resistive Pot), 1-4 Volts (Hall Active Throttle)
• Throttle Input: 0-5 Volts, Can Use 3-wire Pot to Produce 0-5V Signal
• Full Power Operating Temperature Range: 0℃ to 70℃  (MOSFET Temperature)
• Operating Temperature Range: -40℃ to 100℃ (MOSFET Temperature)
• Max Battery Current: Configurable

Tips: How to maintain this brushless DC motor controller?

• There are no user-serviceable parts inside the controllers. Do not attempt to open the controller as this will void your warranty. However, periodic, exterior cleaning of the controller should be carried out.
• The BLDC motor controller is a high-powered device. When working with any battery-powered vehicle, proper safety precautions should be taken that include, but are not limited to, proper training, wearing eye protection, and avoidance of loose clothing, hair and jewelry. Always use insulated tools.
