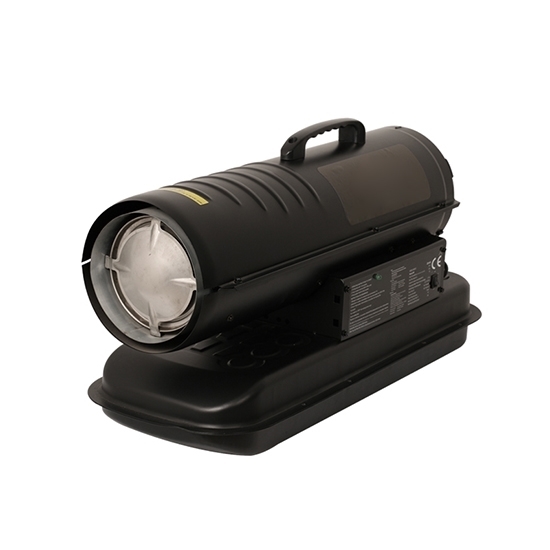

    20kW Portable Industrial Diesel Fan Heater

    5 out of 5 based on 1 reviews | Write a review
    20kW portable air heater using diesel or kerosene fuel and fuel consumption is 2.0L/h, heating area up to 400m3, stainless steel combustion chamber with cooling fan, easy to move and maintenance, suitable for heating warehouse, factories, and workshops.
    SKU: ATO-FH-020
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    20kW (70000 BTU) industrial direct diesel fan heater operates at single phase 110V/ 60Hz, 220V/50Hz AC power supply, with flame sensor, time relay and automatic electronic safety control devices. If no oil, heater will cut off the power.

    Parameter List

    Model ATO-ZBK70
    Power Supply Single phase AC 110V/60Hz, 220V/50Hz (Other voltages can be customized)
    Power 20kW (70000 BTU)
    Fuel Diesel, Kerosene (Note that our heater using diesel and electricity for power at the same time)
    Fuel Tank 19L
    Fuel Consumption 2.0L/h
    Heating Area 400m3
    Ignition Type Continuous spark ignition
    Thermostat Control Yes
    Waterproof Class IPX4
    Work Temperature 5℃-45℃
    Certification CE, RoHS
    Warranty 12 months
    Product Size 770*290*395mm
    Net Weight 14kg

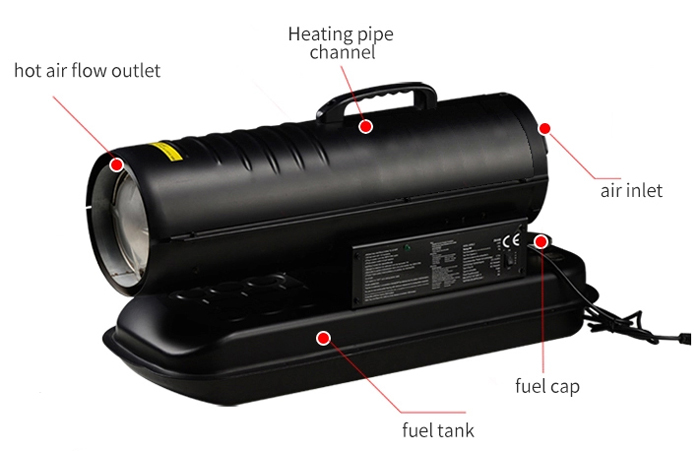

    Fan Heater Details

    Diesel fan heater details

    Spare Parts

    Fan heater spare parts

    Input Power Cable Selection

    Fan heater plug selection

    Tips: 5 Things Should Be Known When Using Diesel Fan Heater

    1. Now the diesel air heater is generally equipped with a built-in temperature limiter. When the temperature is higher than the safe temperature of the fuselage, it will automatically power off. Wait for the temperature of the fuel heater to drop naturally, and then turn it on.

    2. If your diesel fan heater has been used for more than 2 years, it is recommended to remove the fuel heater and clean the small water tank inside the fuel heater.

    3. Then look at whether the diesel heater is placed normally. If there is an abnormally placed payment, there will be automatic power failure when dumping. Nowadays, fuel heaters generally have automatic power failure protection when dumping. When the machine tilts more than 30 °, the power will automatically turn off and the heating will stop. We just need to put the fuel heater on a stable place and then use it with electricity.

    4. Of course, after the fuel heater is used for a long time, the circuit and plug are prone to aging and short circuit. At this time, the fuel heater stops heating and there is a danger of electricity leakage.

    5. Check the power supply and wires carefully. See if the above situation exists, and then go to find after-sales customer service personnel for maintenance. Be sure to check the air inlet of the fuel heater in time. If too much dust accumulates in the air inlet, the hot air will not come out smoothly, so the normal heating will not be performed.

    Existing reviews of 20kW Portable Industrial Diesel Fan Heater
    Safe 20kW portable industrial diesel fan heater
    I really like the design of this 20kW portable industrial diesel fan heater. It comes with a cooling fan, which can help it cool down when the heater temperature is high, ensuring the safety of using the 20kW portable industrial diesel fan heater.
    From: Kuroneko | Date: 19/08/2021
    Was this review helpful? Yes No (0/0)
    Load more reviews...
