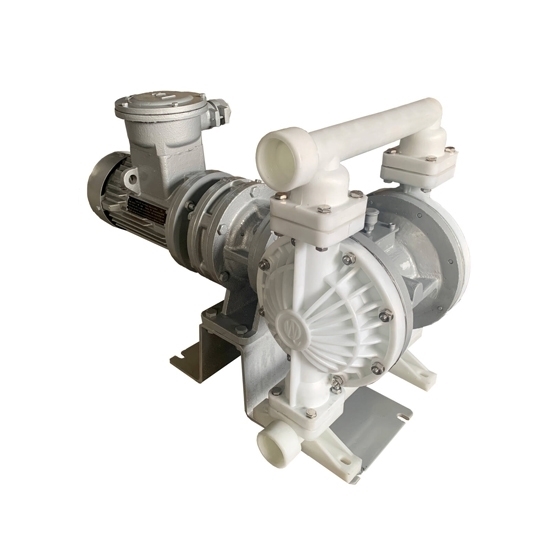

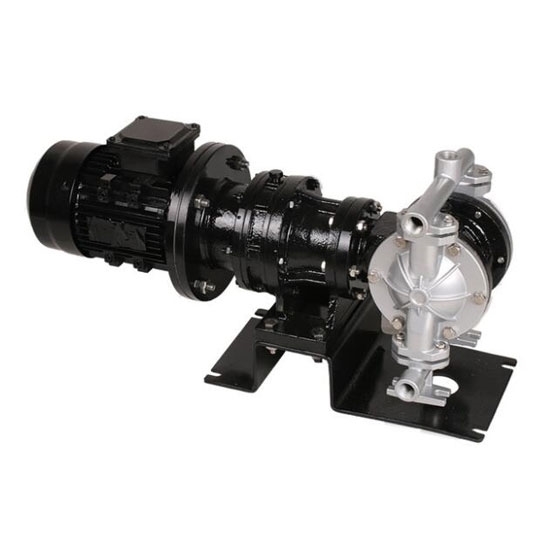

    3/8" Electric Diaphragm Pump, 2.2GPM, 0.55kW

    5 out of 5 based on 2 reviews | Write a review
    $1,099.99
    Low price 3/8 inch double diaphragm pump, max. flow 2.2 GPM, with 380V electric motor for delivering high viscosity fluids and slurry, 0.55 kW, speed ratio 1:17, motor speed 1450 rpm, gear ratio 1:17, optional body material of plastic, aluminum alloy, stainless steel and cast iron.
    SKU: ATO-EODD-10
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    3/8 inch EODD pump powered by an electric motor for delivering high viscosity fluids, slurry, Acid alkaline liquid, toxic liquid and so on, with max. flow 2.2 GPM, working temperature up to 100℃, high performance and high efficiency.

    Specification

    Model ATO-DBY3-10
    Max. Flow 2.2 GPM (0.5 m3/h)
    Fluid Inlet Size 3/8 inch (DN10)
    Fluid Outlet Size 3/8 inch (DN10)
    Connection Type (Optional) NPT, BSPT, ANSI Flanged, DIN Flanged
    Suction Lift 10 ft. (3m)
    Head 100 ft. (30m)
    Outlet Pressure 3 kgf/cm2
    Motor Speed 1450 rpm
    Motor Voltage 380V
    Motor Power 0.55kW
    Reducer Speed Ratio 1:17
    Working Temperature Polypropylene: 70℃
    Aluminum Aloy: 90℃
    Stainless Steel: 100℃
    Cast Iron: 90℃
    Body Material (Optional) Polypropylene (Plastic), Aluminum Alloy, Stainless Steel, Cast Iron
    Diaphragm Material Butyronitrile (Default)/ Teflon (Customizable)
    Weight 41kg, 42kg, 44kg, 45kg

    Dimensions (Unit: mm)

    Dimensions of Electric Operated Double Diaphragm Pump with Motor

    Model A B C F L H H1 H2 H3 M Thread Type (NPT, BSPT) Flange Type (ANSI, DIN)
    D D1 D2 D3
    ATO-DBY3-10 340 145 145 12 630 330 75 215 35 220 3/8 75 50 4 - φ12 12

    Flow Diagram

    Flow Diagram of Electric Operated Double Diaphragm Pump with Motor

    Details

    Details of Electric Operated Double Diaphragm Pump with Motor

    1 motor 8 Grease Nipple 14 Piston Shaft
    2 Reducer 9 Footing 15 Inner Press Plate
    3 Wobber 10 Pump Body 16 Diaphragm
    4 Bearing 11 Sealing Ball 17 Outer Press Plate
    5 Outlet Pipe 12 Sealing seat 18 Sealing Gasket
    6 Iternediate 13 Inlet Pipe 19 Press Plate Screw
    7 Cover Plate

    Tips: Reasons for the high temperature of electric diaphragm pump

    • Water leakage or insufficient cooling water in the cooling system.
    • Inaccurate or malfunctioning water temperature indicator.
    • Too much scale in the cooling system and poor heat dissipation effect.
    • The radiator shield net or the radiator core air passage is blocked by debris, resulting in poor heat dissipation.
    • The belts of the water pump and fan are too loose or broken.
    • The electric diaphragm pump is damaged, the fan blades are reversed or deformed, and the wind ring is damaged.
    • The thermostat is damaged in the closed position of the main valve.
    • Long-term overload operation of the engine and late fuel supply time, etc.
    • Check whether a valve is installed at the outlet.
