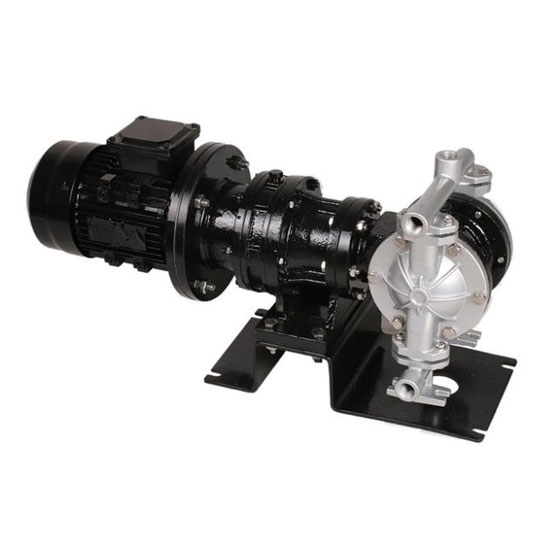

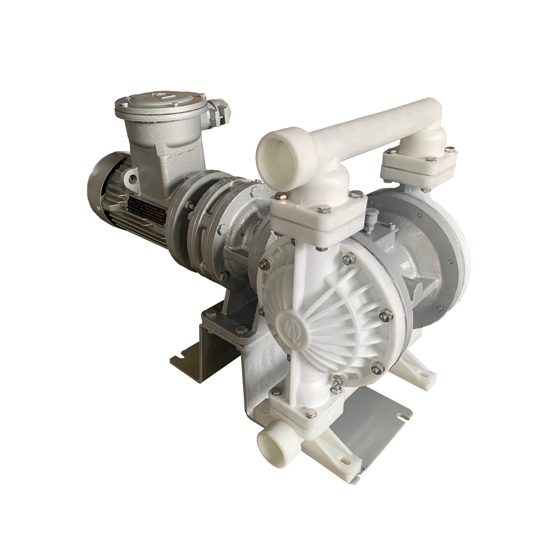

    1/2" Electric Diaphragm Pump, 3.3GPM, 0.55kW

    5 out of 5 based on 2 reviews | Write a review
    $1,158.99
    Buy 1/2 inch electric operated diaphragm pump at economical price, with 380V motor, 0.55kW, speed ratio 1:17, selectable body material of polypropylene, aluminum alloy, stainless steel and cast iron. This EODD pump is widely used for delivering high viscosity fluids and slurry.
    *
    *
    *
    SKU: ATO-EODD-15
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    EODD pump is a reciprocating diaphragm pump with electric motor for pumping different kinds of virulent, inflammable, volatile liquids and recovering hot water, manufacturer direct sale.

    Specification

    Model ATO-DBY3-15
    Max. Flow 3.3 GPM (0.75 m3/h)
    Fluid Inlet Size 1/2 inch (DN15)
    Fluid Outlet Size 1/2 inch (DN15)
    Connection Type (Optional) NPT, BSPT, ANSI Flanged, DIN Flanged
    Suction Lift 10 ft. (3m)
    Head 100 ft. (30m)
    Outlet Pressure 3 kgf/cm2
    Motor Speed 1450 rpm
    Motor Voltage 3-Phase 380V
    Motor Power 0.55kW
    Reducer Speed Ratio 1:17
    Working Temperature Polypropylene: 70℃
    Aluminum Aloy: 90℃
    Stainless Steel: 100℃
    Cast Iron: 90℃
    Body Material (Optional) Polypropylene (Plastic), Aluminum Alloy, Stainless Steel, Cast Iron
    Diaphragm Material Butyronitrile (Default)/ Teflon (Customizable)
    Weight 41kg, 42kg, 44kg, 45kg

    Dimensions (Unit: mm)

    Dimensions of Electric Operated Double Diaphragm Pump with Motor

    Model A B C F L H H1 H2 H3 M Thread Type (NPT, BSPT) Flange Type (ANSI, DIN)
    D D1 D2 D3
    ATO-DBY3-15 340 145 145 12 630 330 75 215 35 220 1/2 70 55 4 - φ12 12

    Flow Diagram

    Flow Diagram of Electric Operated Double Diaphragm Pump with Motor

    Details

    Details of Electric Operated Double Diaphragm Pump with Motor

    1 motor 8 Grease Nipple 14 Piston Shaft
    2 Reducer 9 Footing 15 Inner Press Plate
    3 Wobber 10 Pump Body 16 Diaphragm
    4 Bearing 11 Sealing Ball 17 Outer Press Plate
    5 Outlet Pipe 12 Sealing seat 18 Sealing Gasket
    6 Iternediate 13 Inlet Pipe 19 Press Plate Screw
    7 Cover Plate

    Tips: Working principle of electric operated double diaphragm pump

    The electric motor drives the diaphragm on the plunger son left and right ends through the reducer to make reciprocating motions from left to right. Inside the left and right pump cavities, there are four upper and lower non-return ball valves making motions to change volumes of the working cavities and drive the four non-return ball valves to open and close alternately, thus sucking and discharging the liquid continually.
